Cohesion Series

Line Arrays

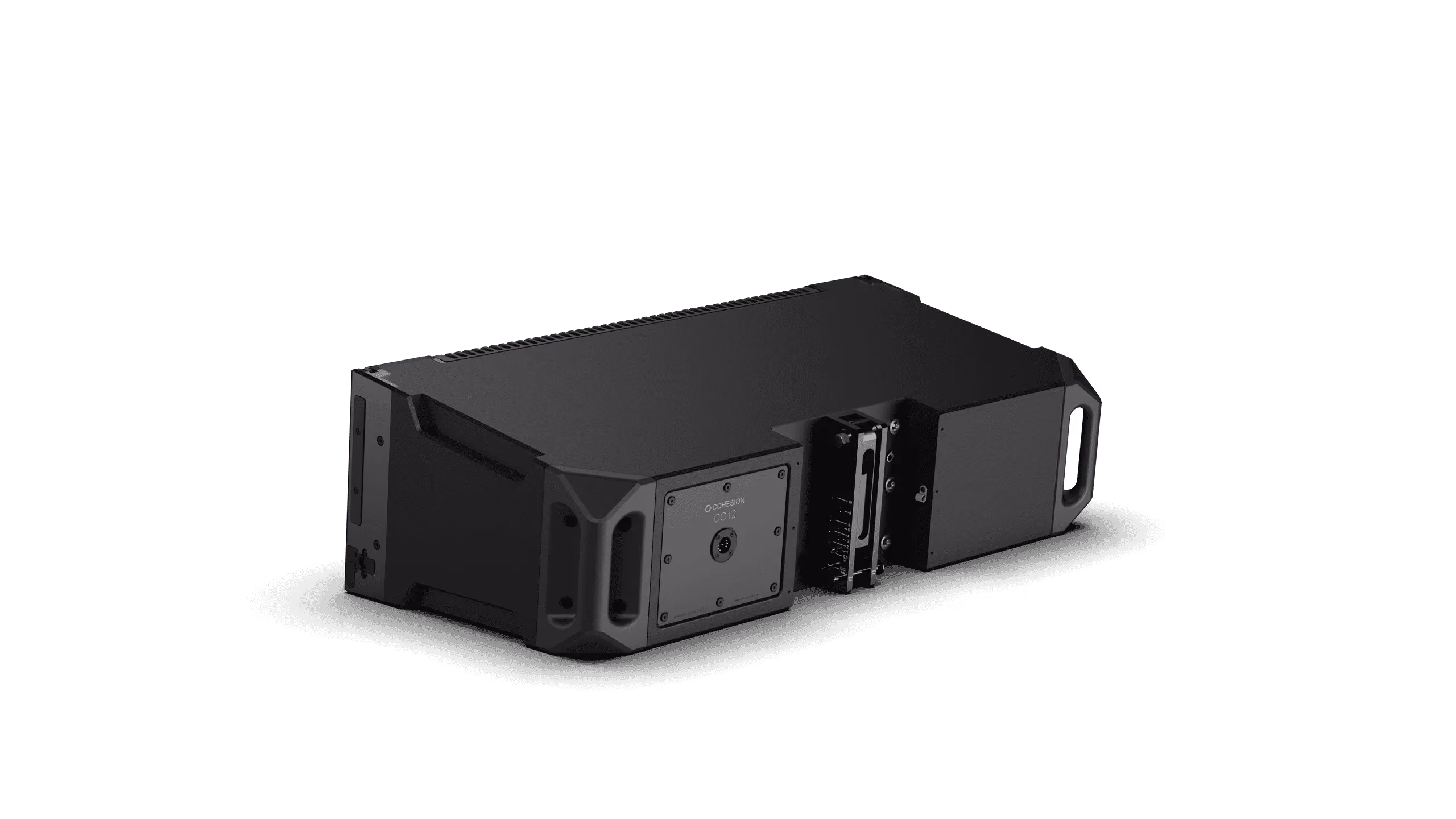

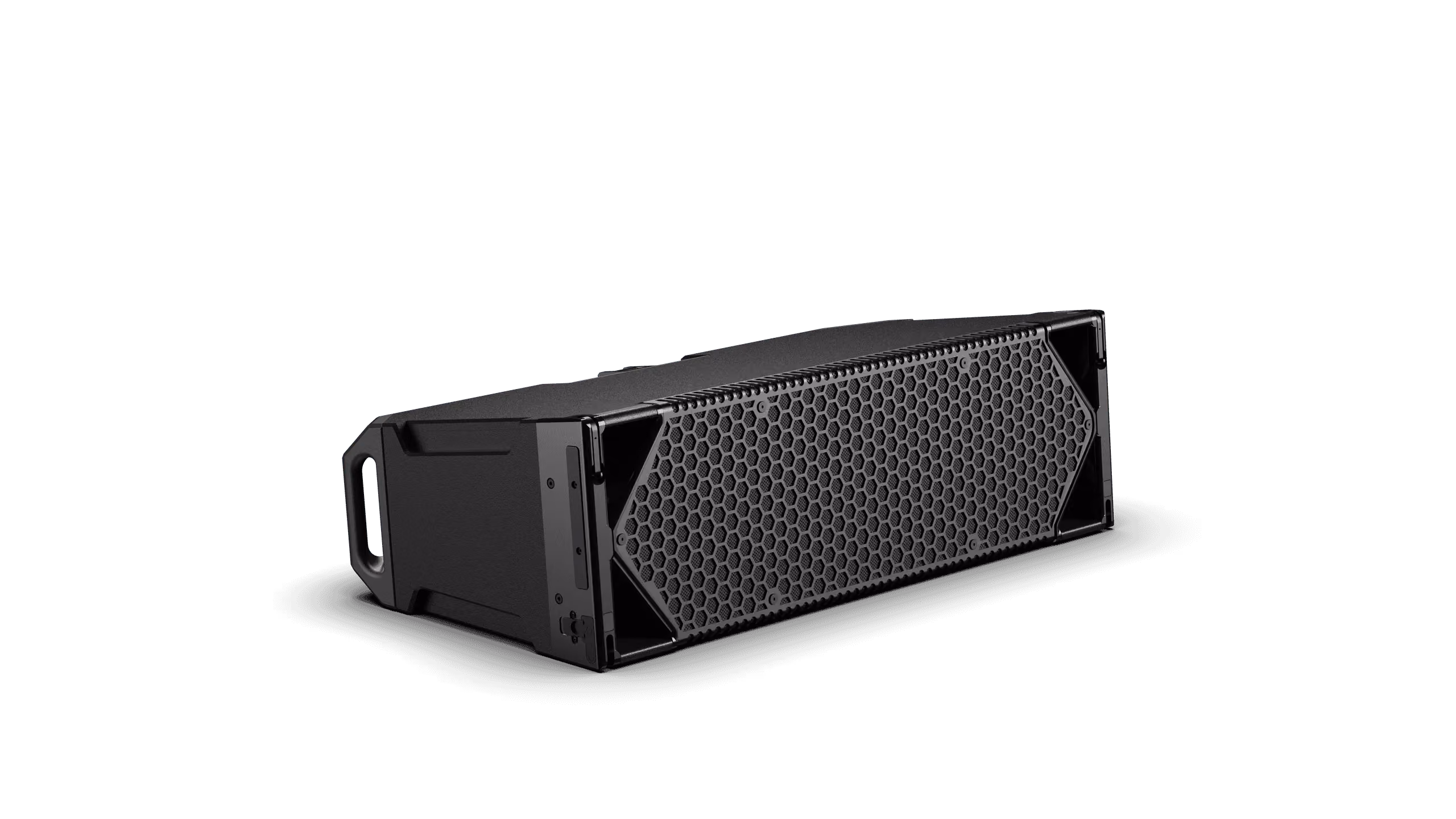

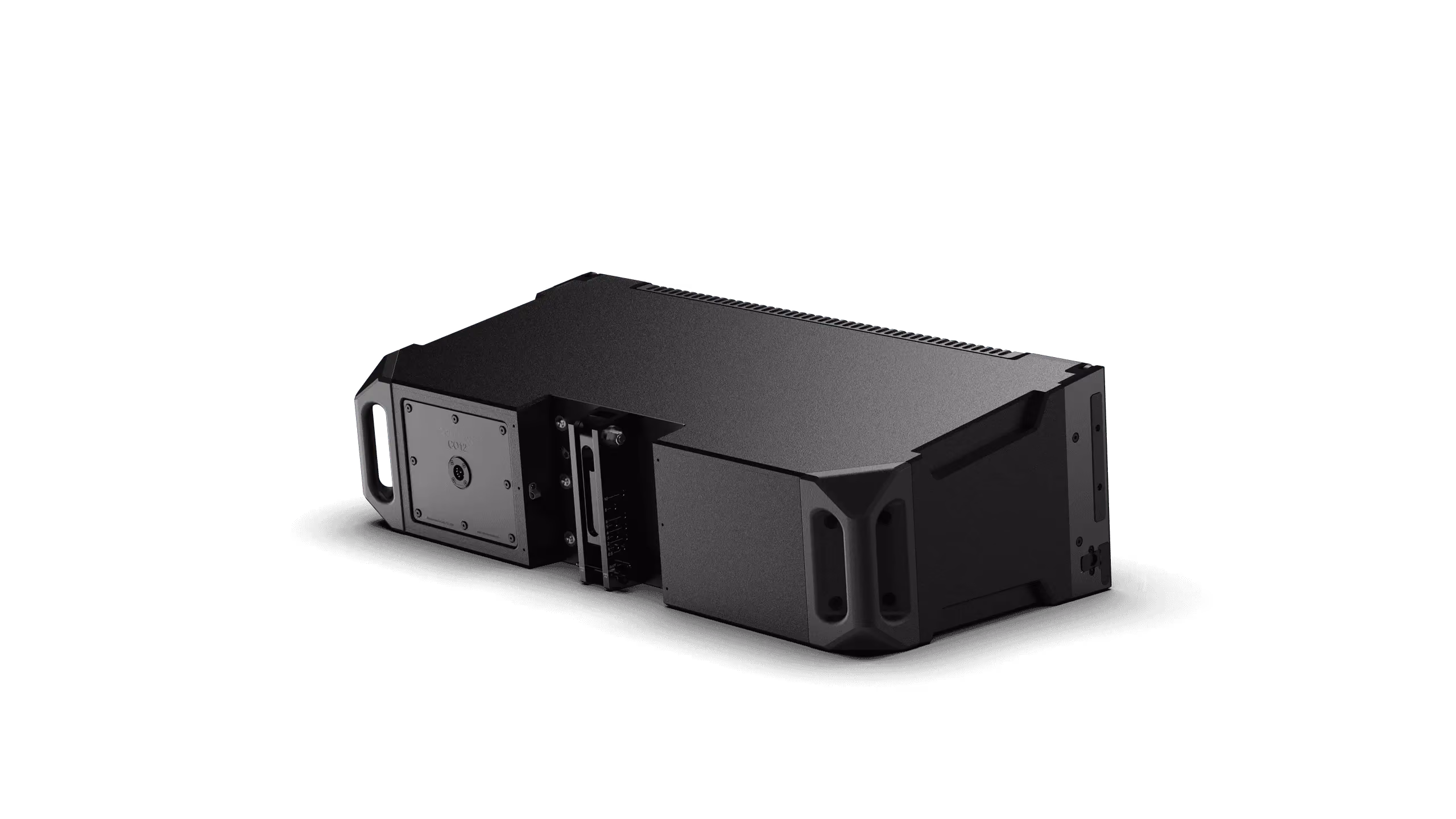

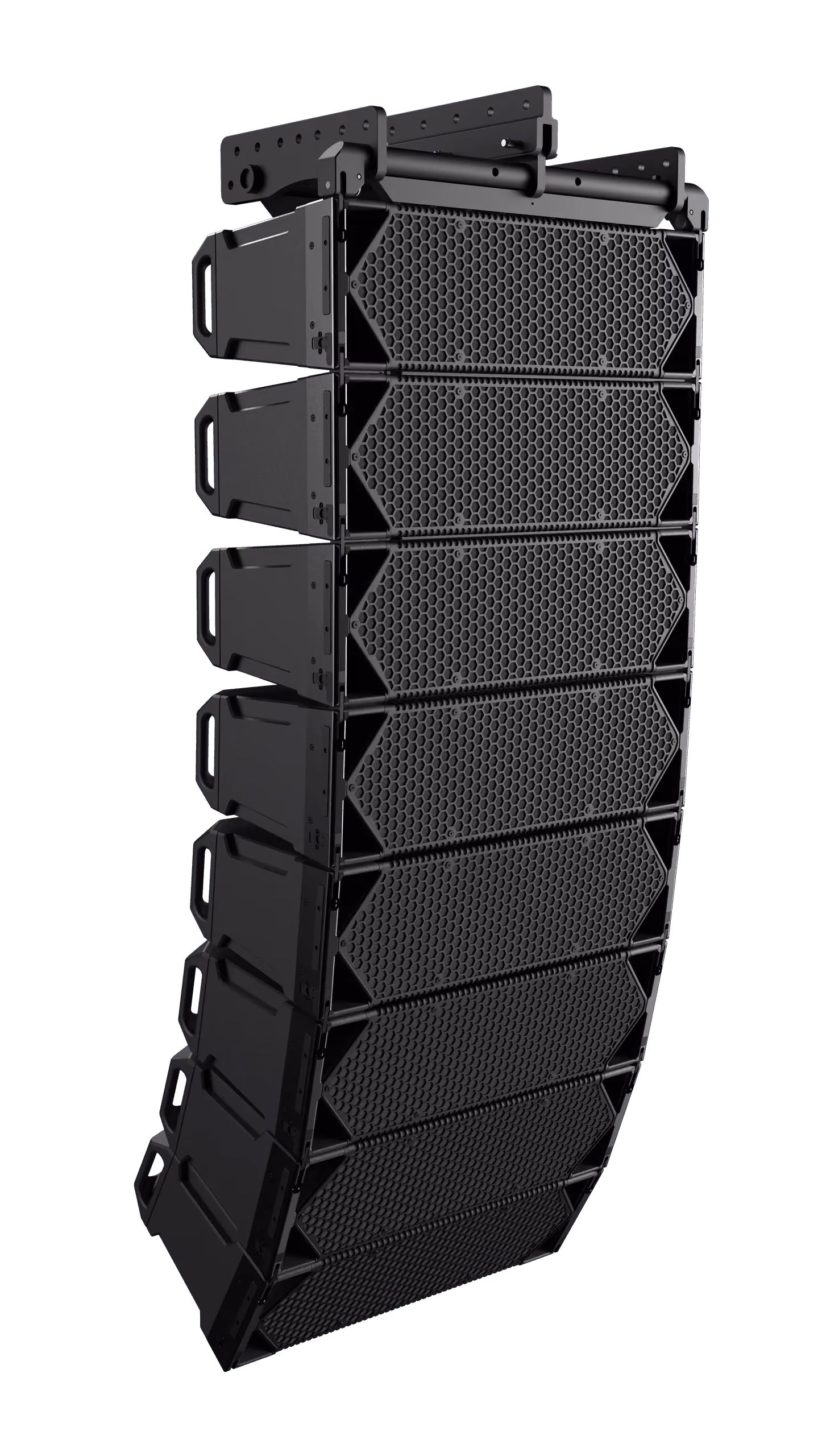

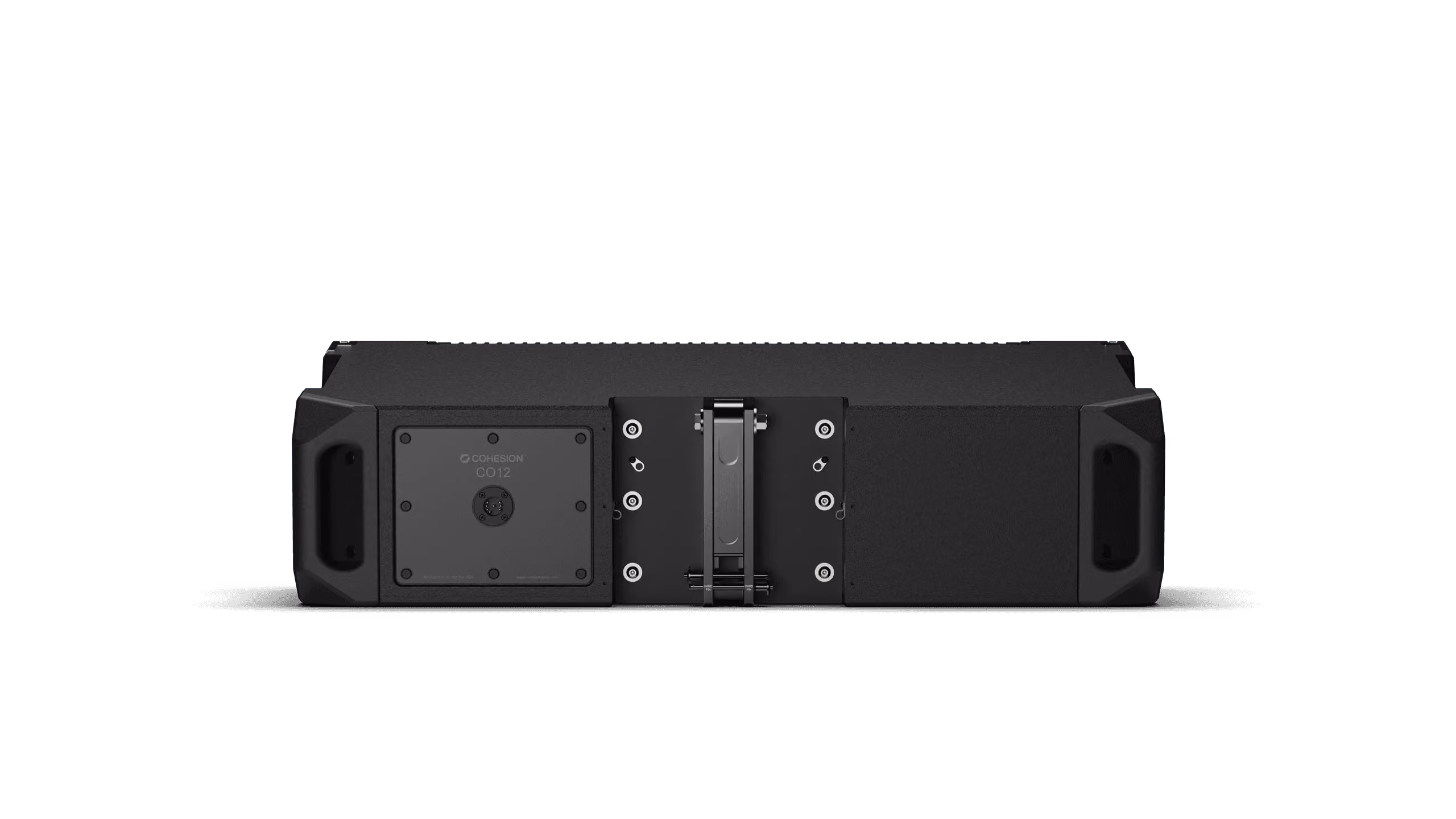

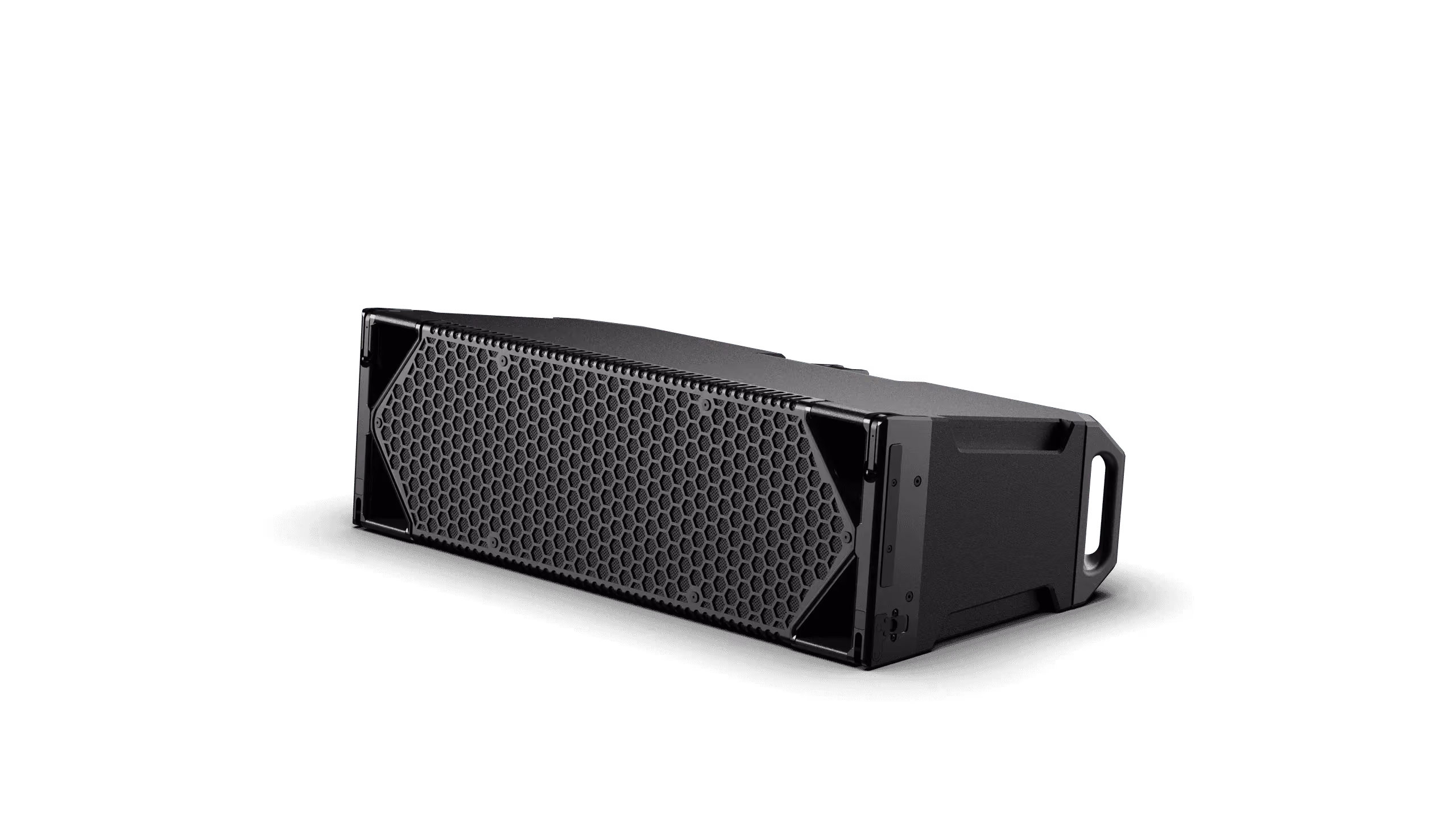

CO12

Three-Way Large Format Line Array Element

Available early 2024

Weight

132 lbs / 60 kg

Size (HxWxD)

14.00 in. x 45.00 in. x 22.00 in.
355.6 mm x 1143.0 mm x 558.8 mm

Directivity

80° H x 10° V (Standard)

120° H x 10° V (Optional)

Max spl

150 dB SPL @ 1 M

Bandwidth

42 Hz–16 kHz (+/-3 dB) / 35 Hz–19 kHz (-10 dB)

available for

Rental

Purchase

Rental & Purchase

Product Description

The CO12 loudspeaker system is the pinnacle of large-format sound reinforcement technology. Engineered with state-of-the-art components, it delivers full-range performance to 35 Hz and best-in-class power density for a 12” arrayable loudspeaker system.

With carefully designed horn inserts, the CO12 offers extremely precise 80° or 120° constant horizontal beamwidth for unmatched pattern control and efficiency over its entire operating range.

The CO12 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

Three-Way Active
Frequency Response (+/- 3 dB): 42 Hz–16 kHz
Frequency Response (-10 dB): 35 Hz–19 kHz
Max. Output: 150 dB SPL @ 1 M Bandpass Dependent
Drivers: LF/LMF: (2) 12 in. (304.8 mm) Cone Drivers / MF: (2) 3.5 in. (90 mm) Voice Coil Compression Drivers; HF: (2) 1.75 in. (44.5 mm) Voice Coil Compression Drivers
Nominal Impedance: LF/LMF: (2) 8 Ohms / MHF: 6 Ohms
Directivity: Standard: 80° H x 10° V / Optional: 120° H x 10° V
Input Connection: (1) EP-8 connector (Male)

Related Products

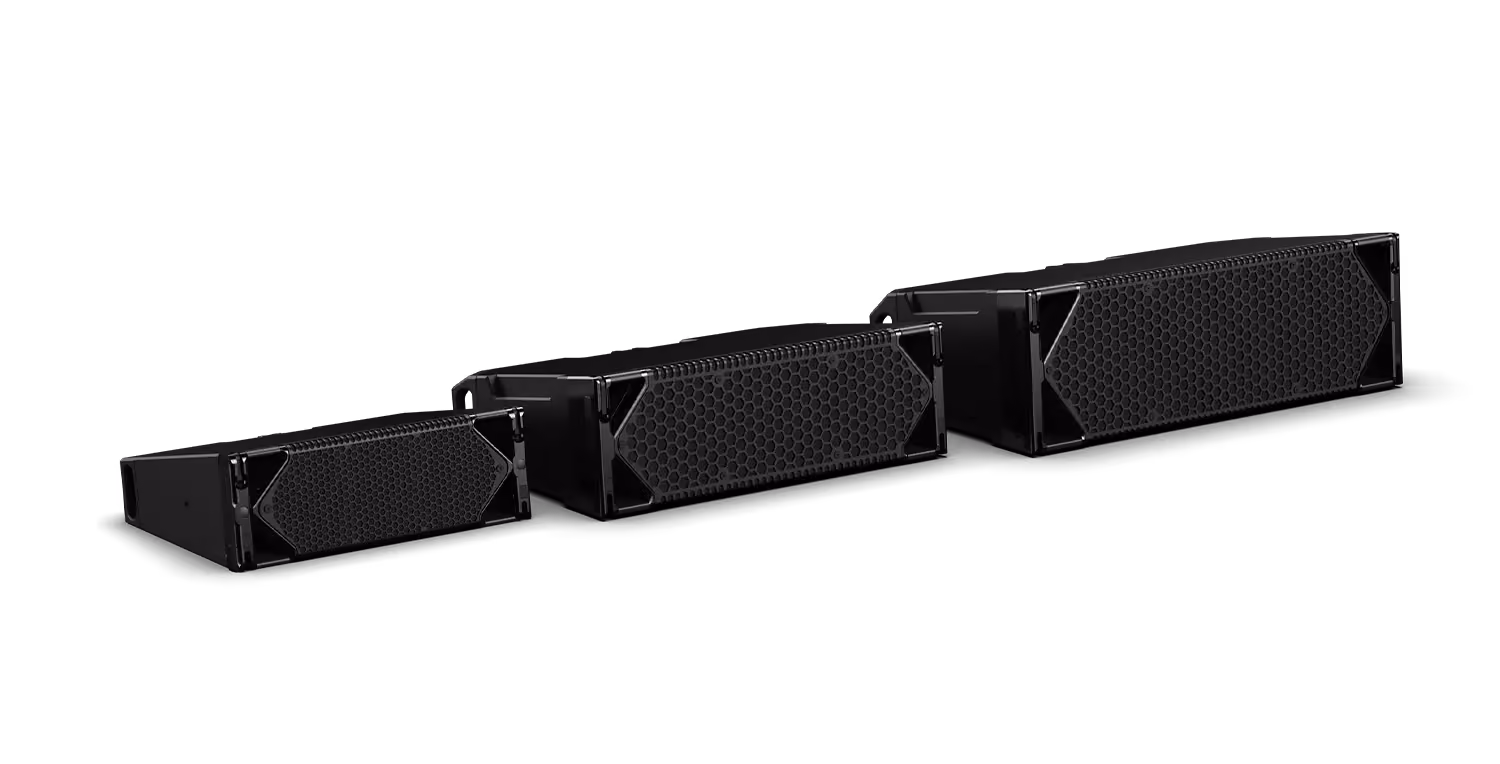

CO Series

Line Arrays

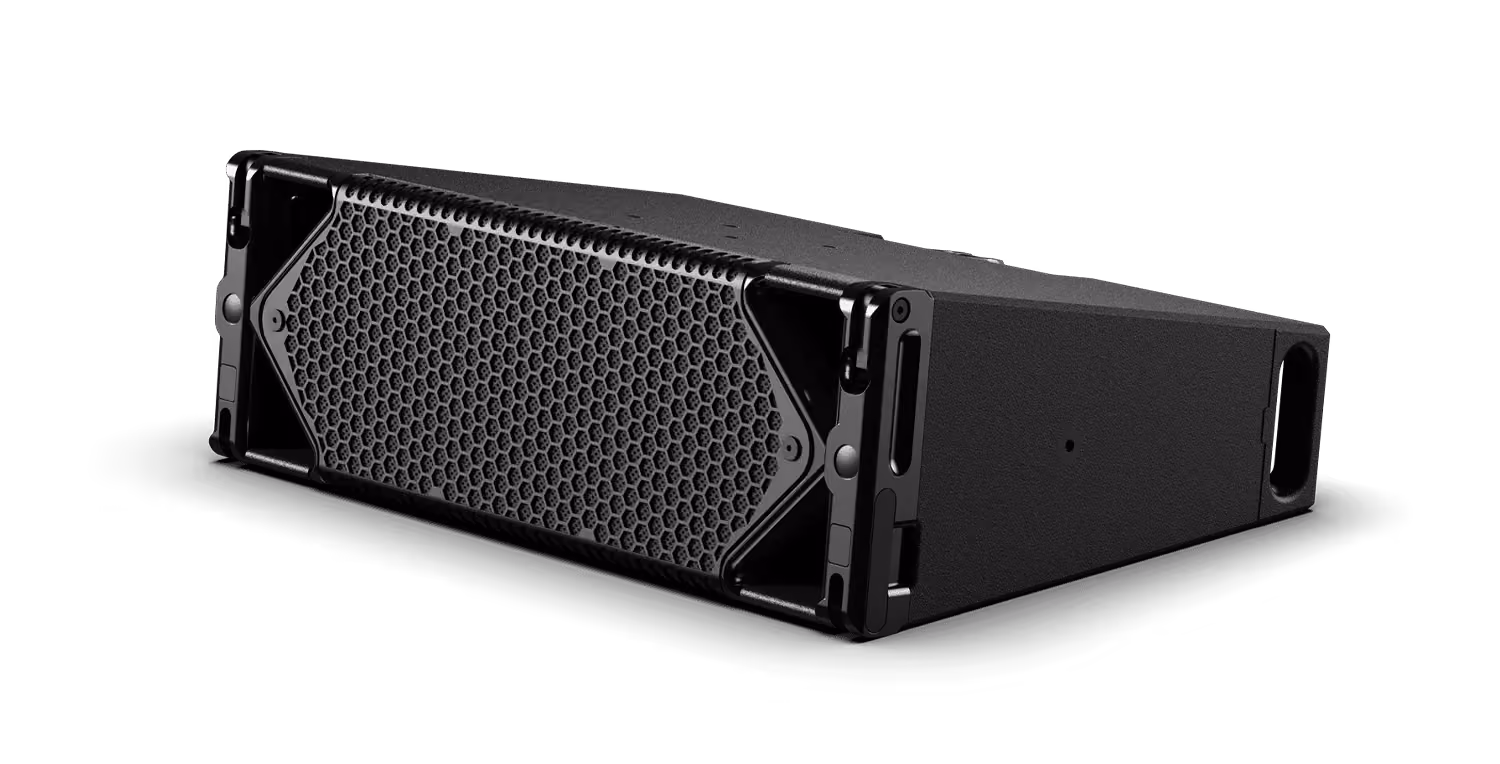

CO8

Three-Way Compact Line Array Element

CO Series

Line Arrays

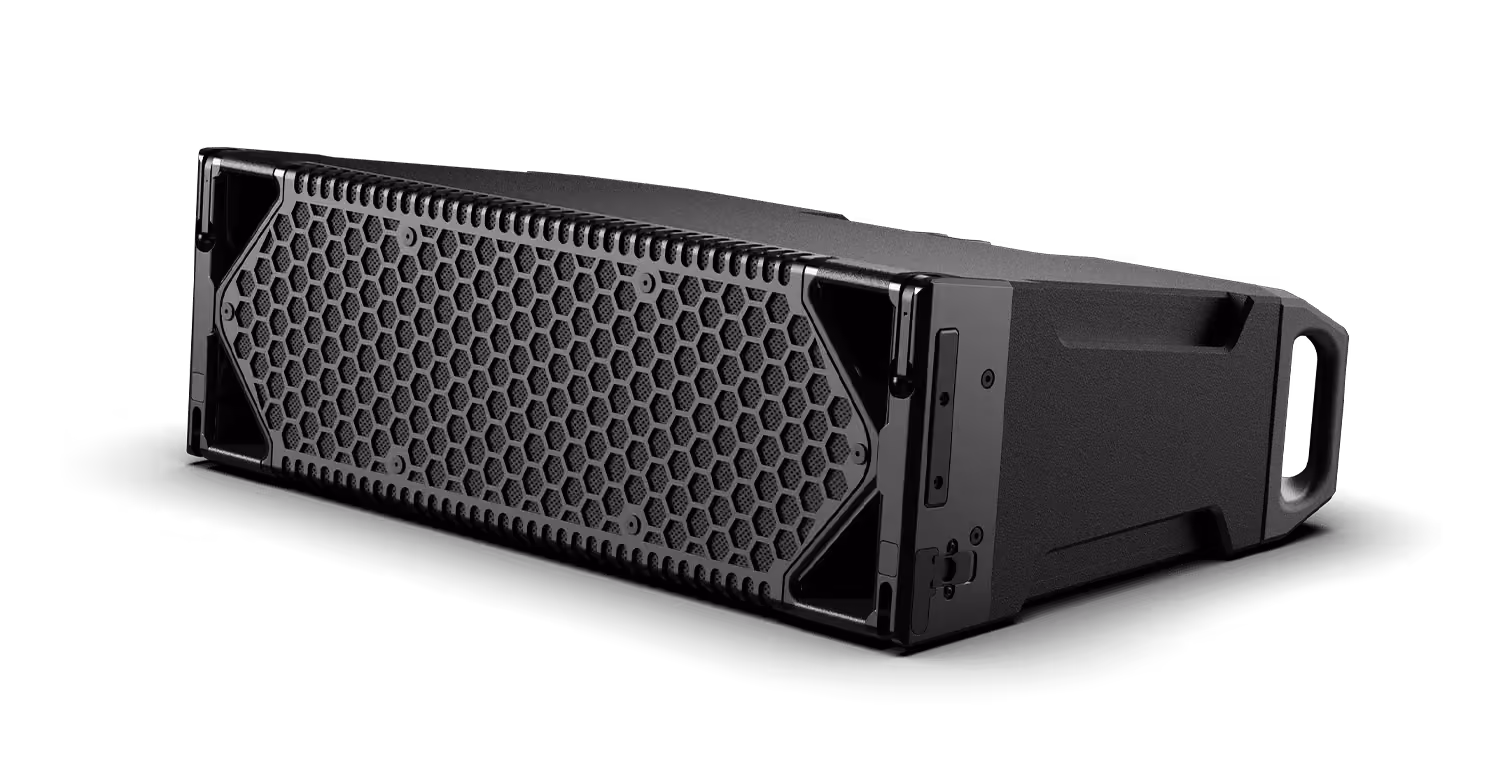

CO10
