Cohesion Series

Line Arrays

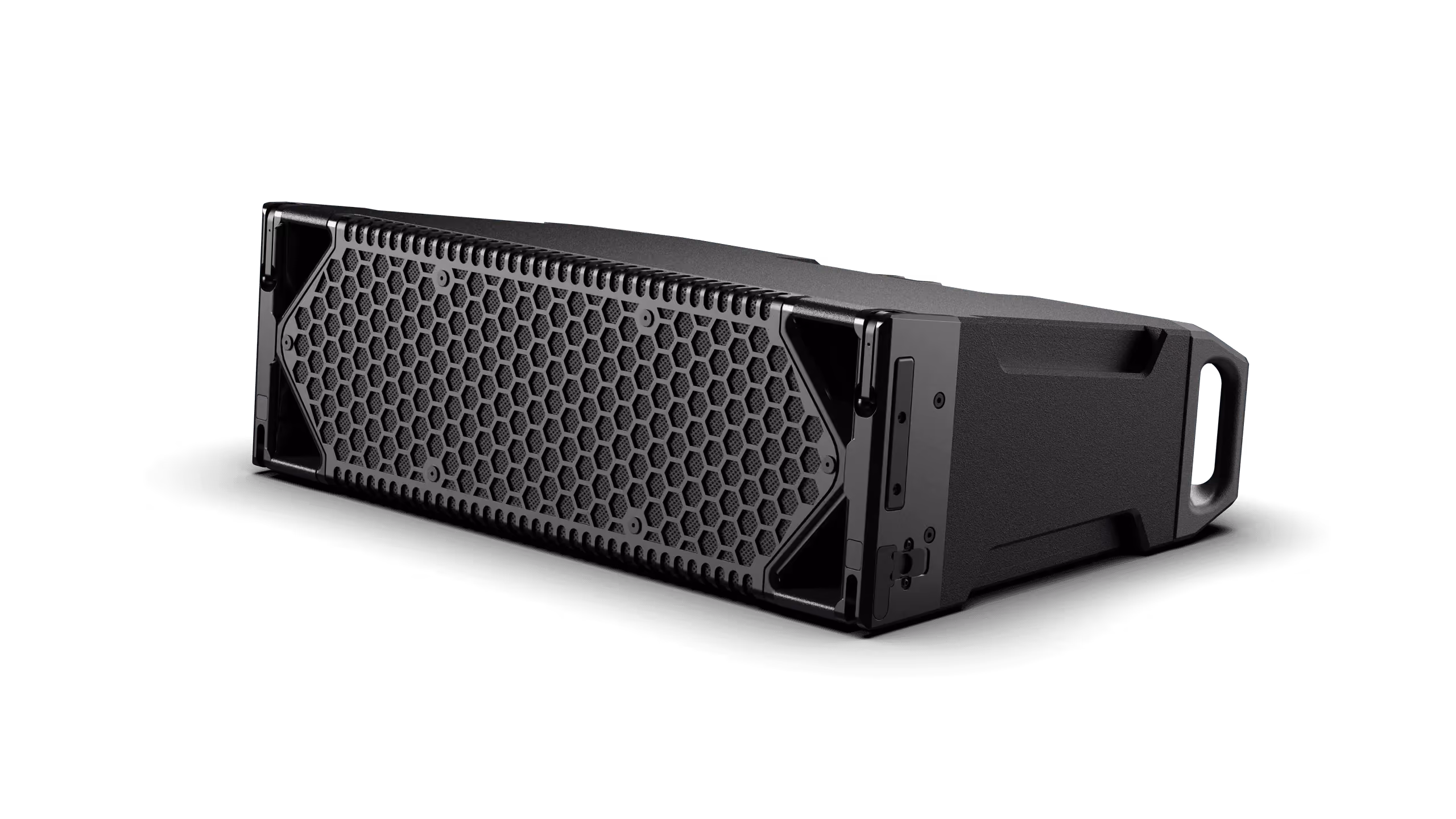

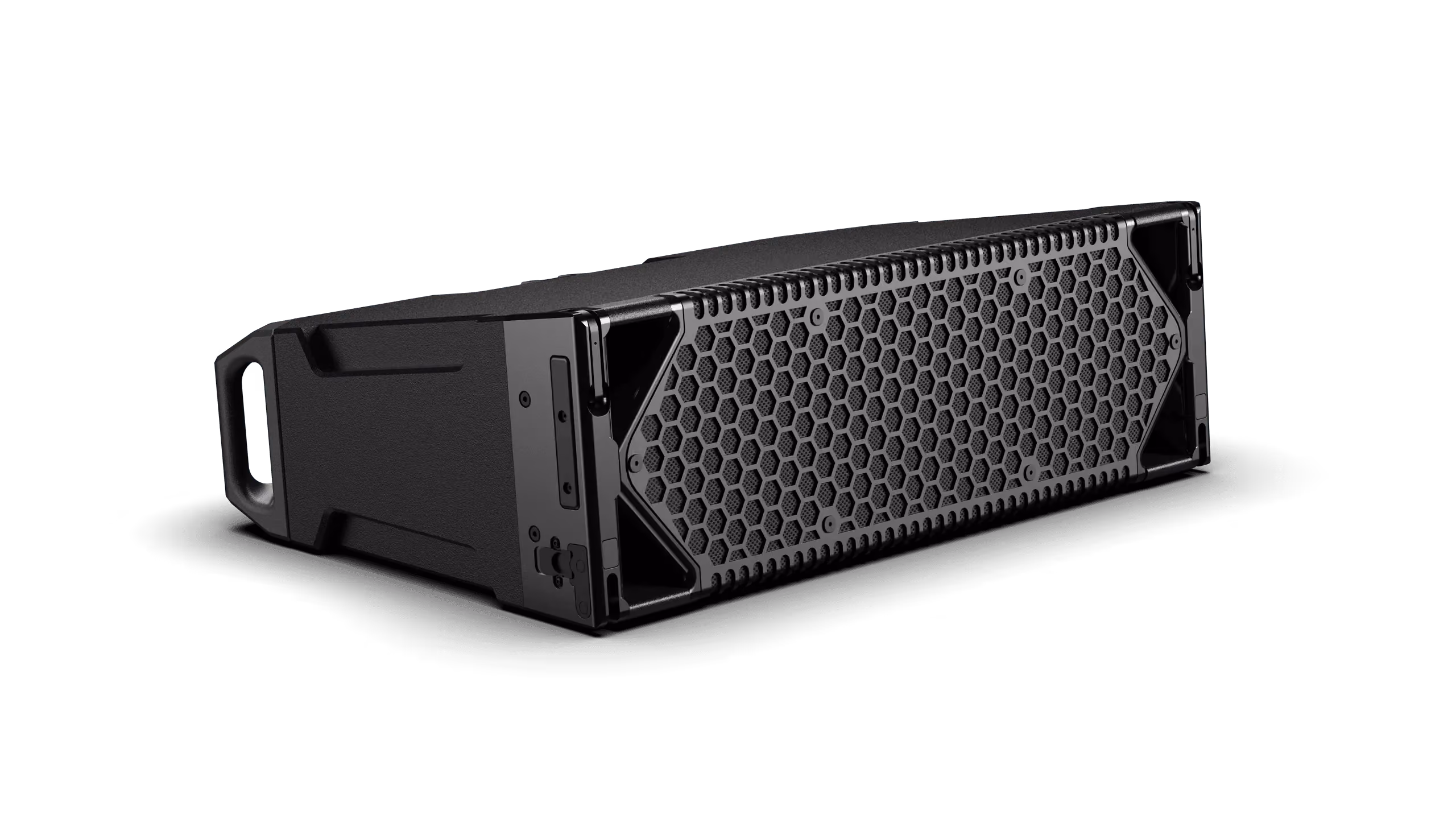

CO10

Three-Way Large Format Line Array Element

Available early 2024

Weight

101 lbs / 46 kg

Size (HxWxD)

11.25 in. x 35.63 in. x 22.07 in.
285.8 mm x 905.1 mm x 560.5 mm

Directivity

80° H x 10° V (Standard)

120° H x 10° V (Optional)

Max spl

147 dB SPL @ 1 M

Bandwidth

42 Hz–16 kHz (+/-3 dB) / 35 Hz–19 kHz (-10 dB)

available for

Rental

Purchase

Rental & Purchase

Product Description

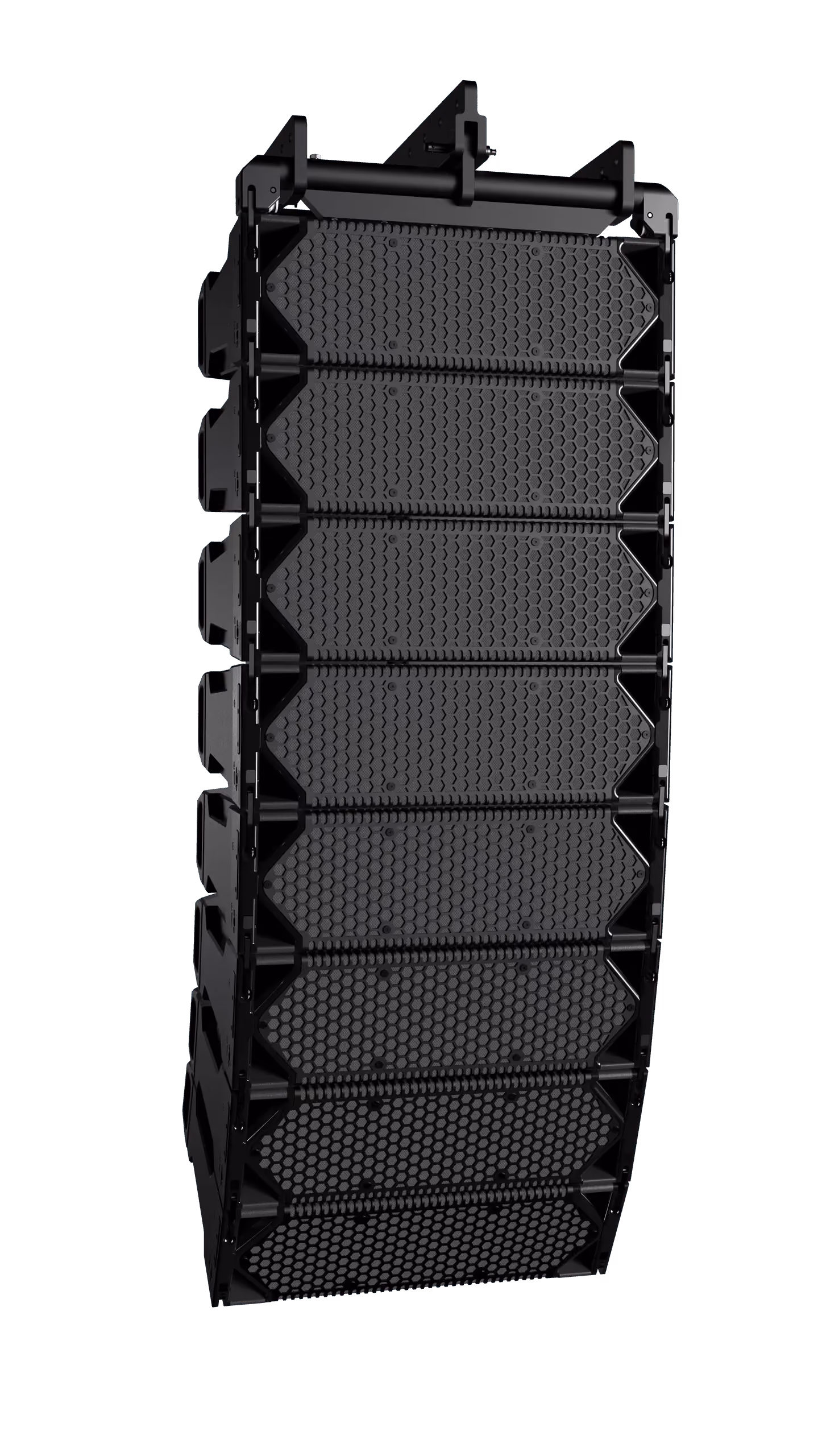

The CO10 loudspeaker system represents an industry-leading mid-sized variable curvature line array system. With class-leading SPL density, it can support the most demanding touring and fixed install applications. Engineered with state-of-the-art components, it delivers full-range performance to 35 Hz despite its compact size.

With carefully designed horn inserts, the CO10 offers extremely precise 80° or 120° constant horizontal beamwidth for unmatched pattern control and efficiency over its entire operating range. The CO10 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

Three-Way Active
Frequency Response (+/- 3 dB): 42 Hz–16 kHz
Frequency Response (-10 dB): 35 Hz–19 kHz‍
Max. Output: 147 dB SPL @ 1 M Bandpass Dependent‍
Drivers: LF/LMF: (2) 10 in. (254 mm) Cone Drivers / MF: (1) 3.5 in. (90 mm) Voice Coil Compression Driver; HF: (1) 1.75 in. (44.5 mm) Voice Coil Compression Driver‍
Nominal Impedance: LF/LMF: (2) 12 Ohms / MHF: 12 Ohms‍
Directivity: Standard: 80° H x 10° V / Optional: 120° H x 10° V‍

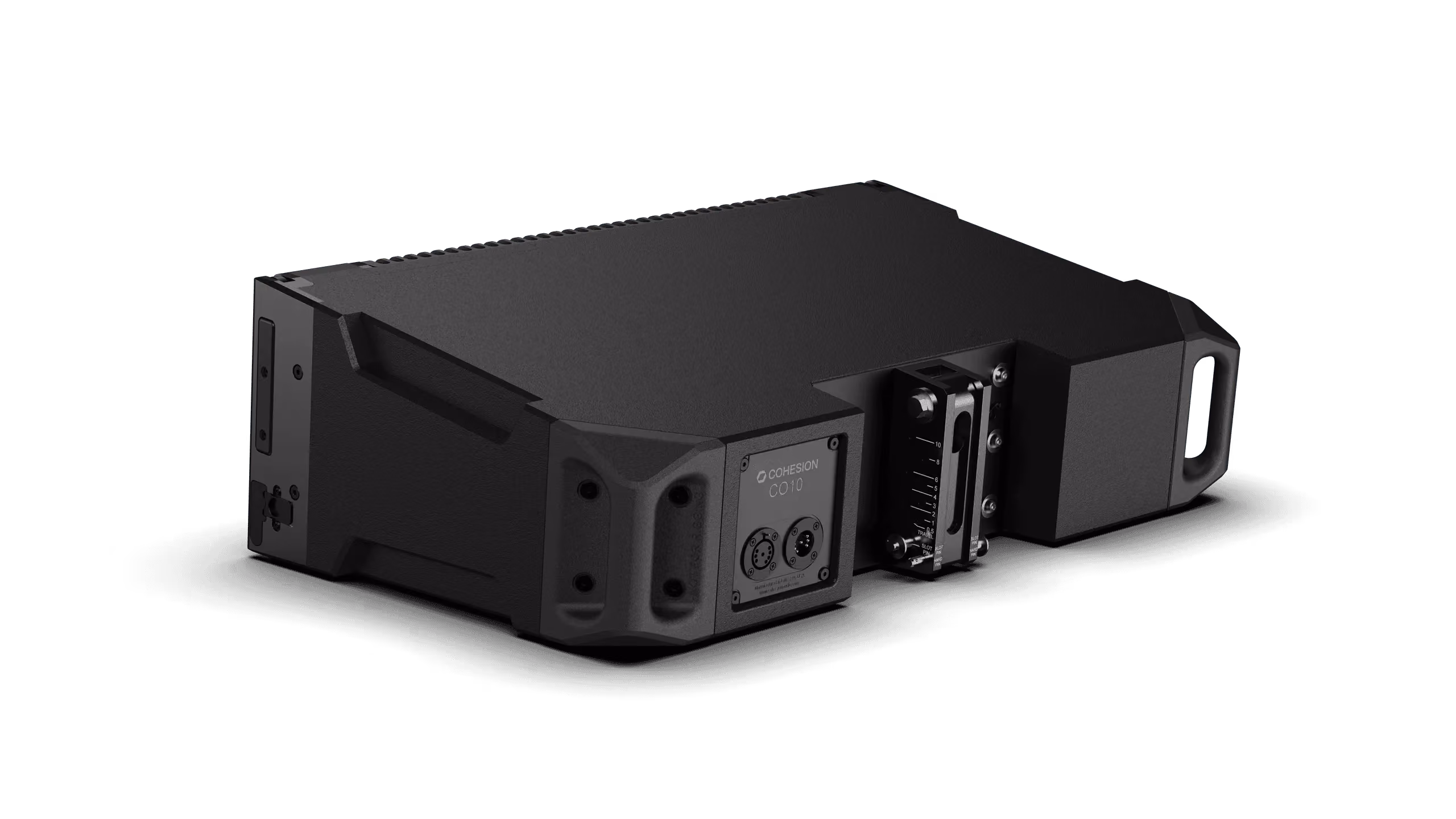

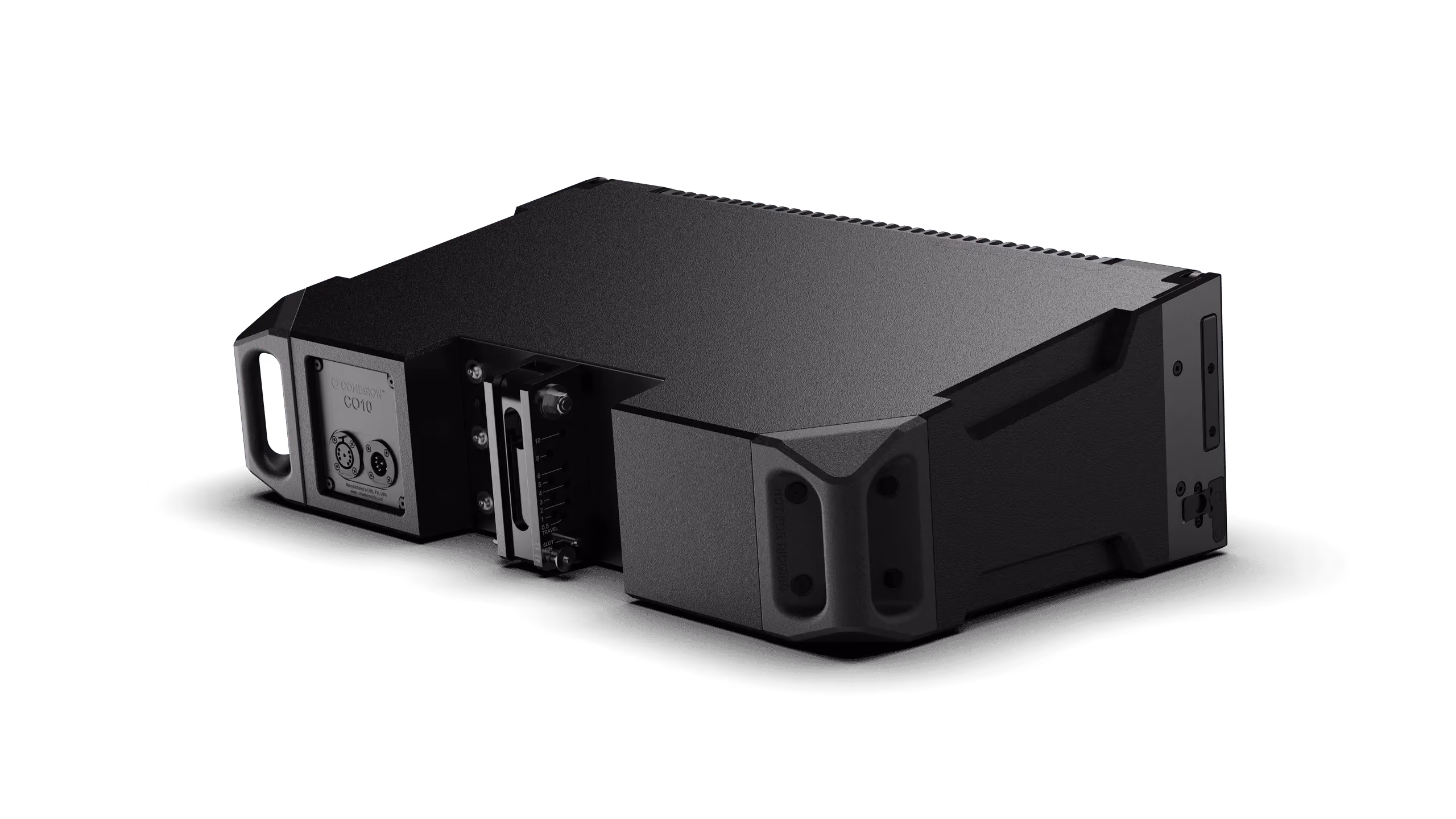

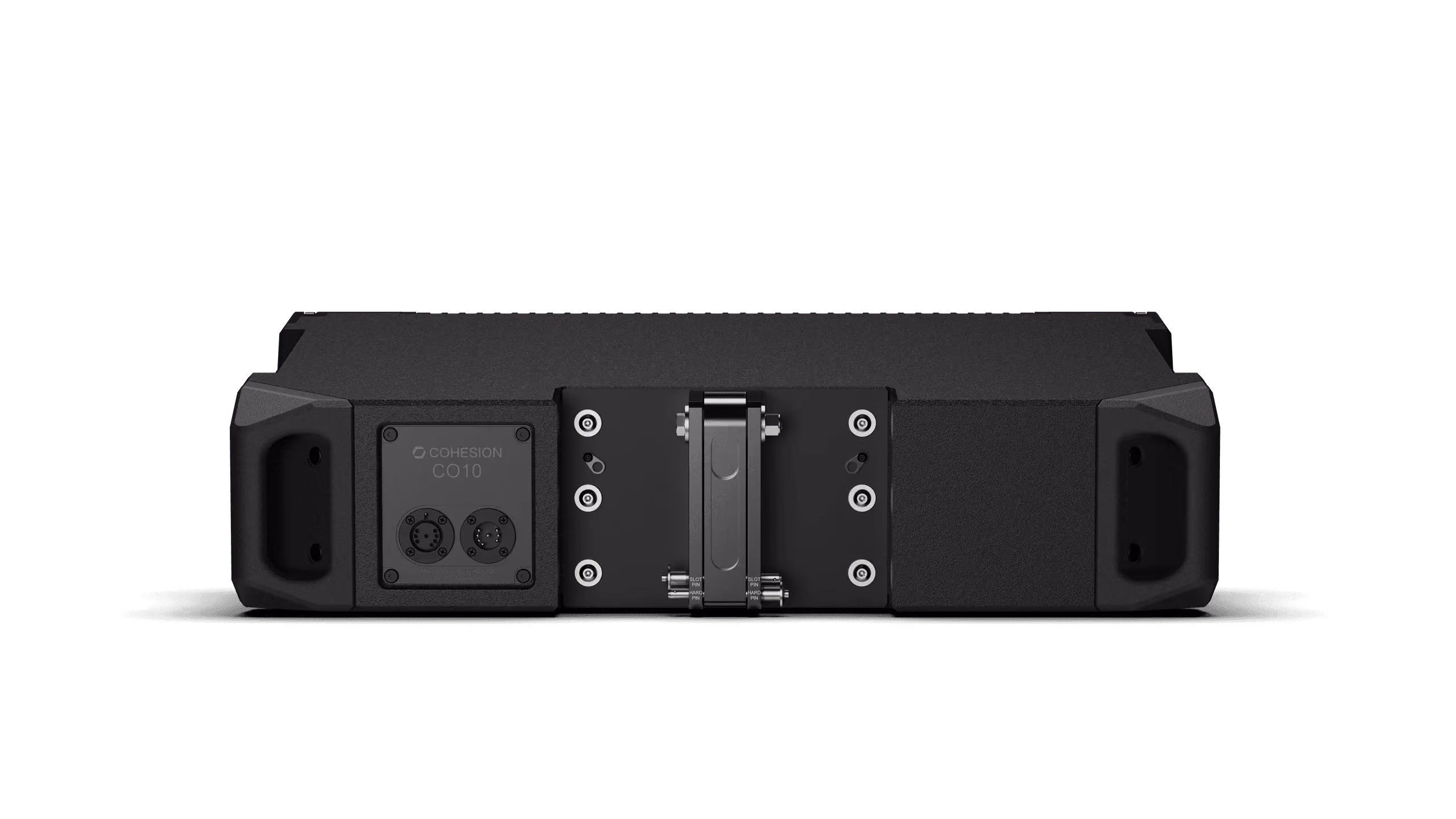

Input Connection: (2) EP-8 Connectors (1 Male, 1 Female)

Related Products

CO Series

Line Arrays

CO8

Three-Way Compact Line Array Element

CO Series

Line Arrays

CO12

Three-Way Large Format Line Array Element

Accessories

#

15582

CO10-TOP GRID

CO10 Top Grid (Touring)

#

15608

CO10-PBA

CO10 Pullback Assembly

#

15603

CO10/12-SLIDER

CO10, CO12 Top Grid Extension/Slider

#

465730

CLAIR DELTA PLATE V2

CO10, CO12 Delta Plate v2

#

15604

CO8/10/12 Wedge

CO8, CO10, CO12 Ground Stack Wedge

#

15572

SMART GRID, INCLINOMETER & LASER MODULE

Smart Grid Inclinometer & Laser Control Module

#

15568

CO10-DOLLY

CO10 Transport Dolly (4X)
