Cohesion Series

Line Arrays

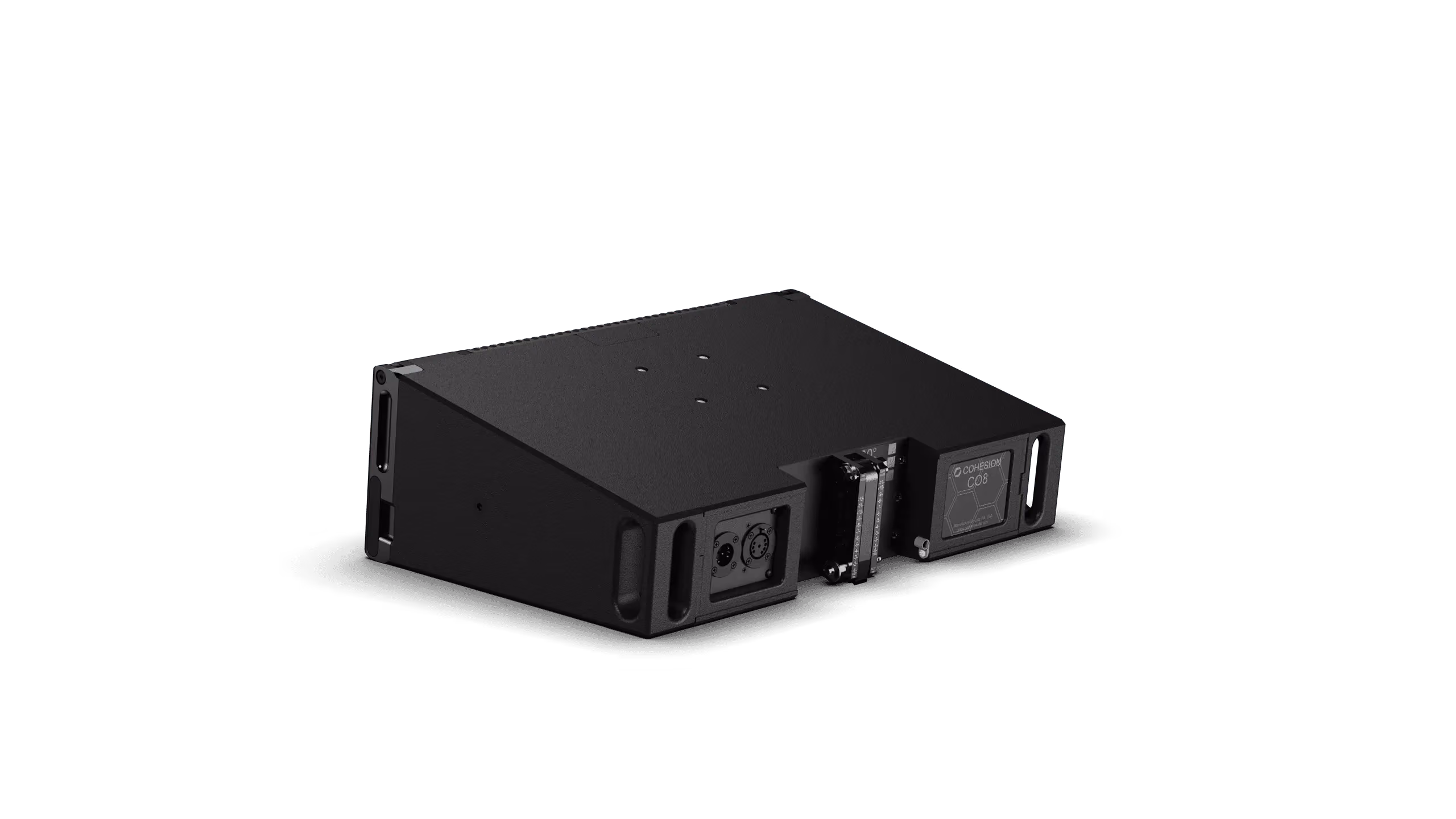

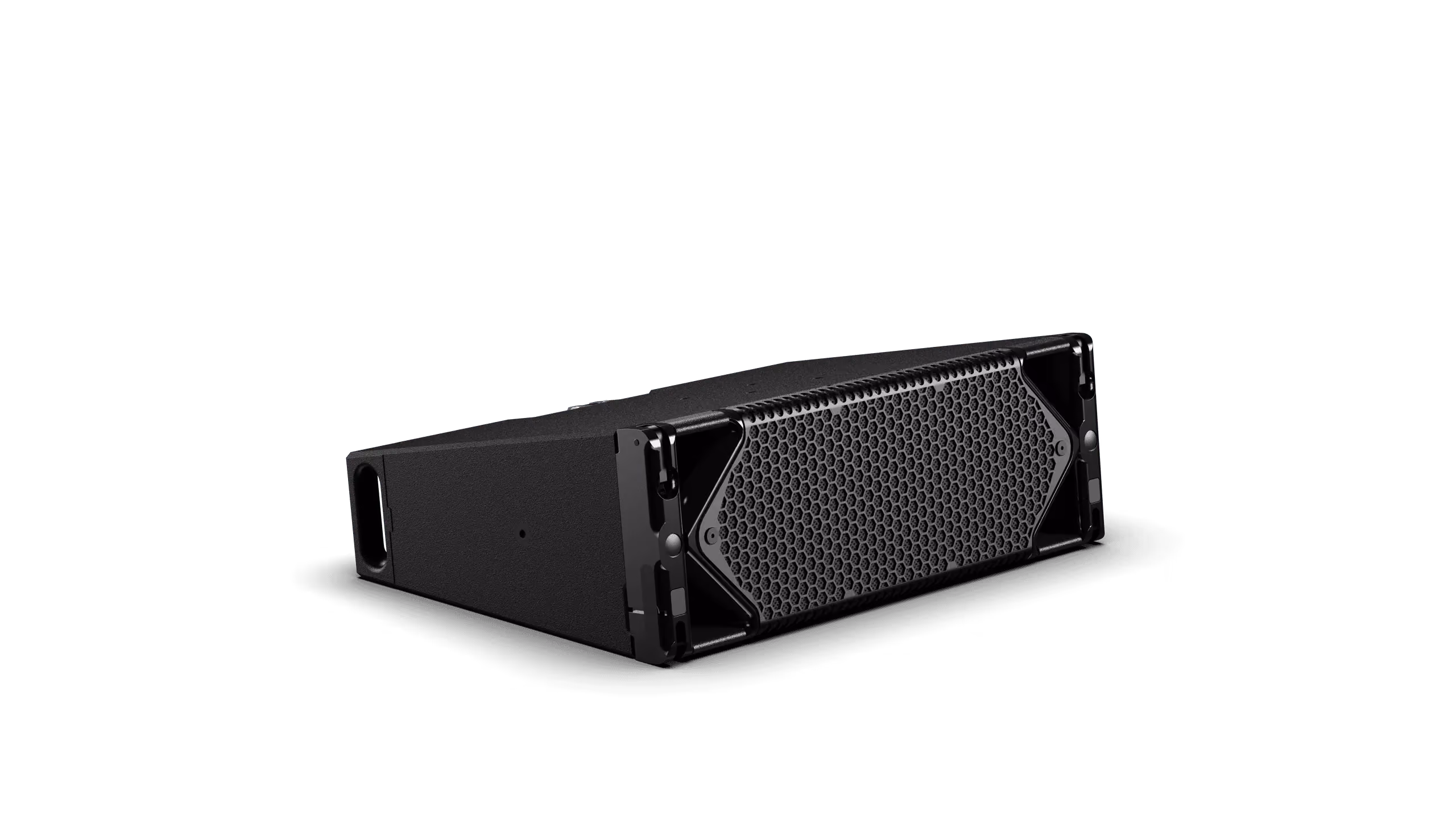

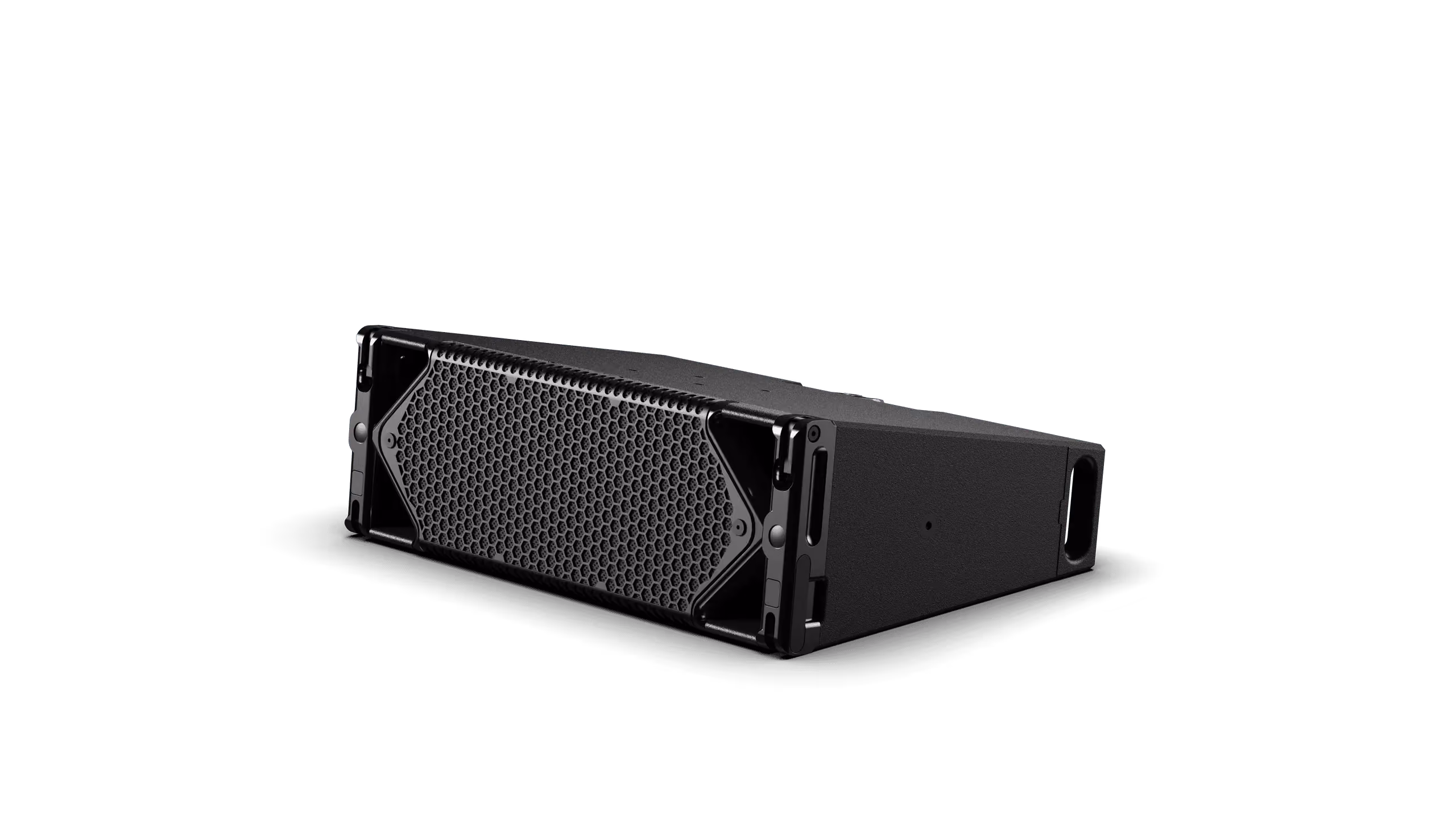

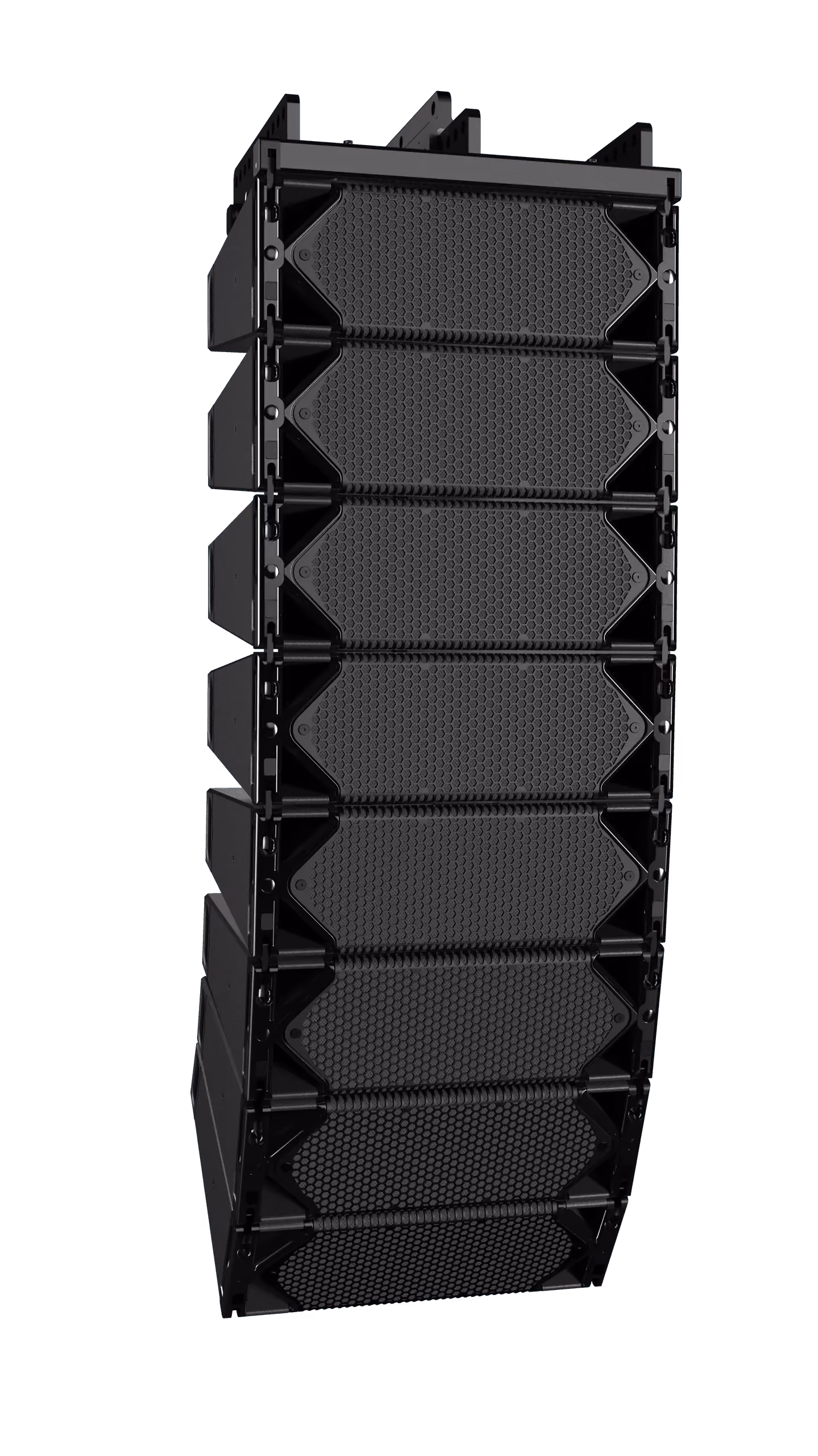

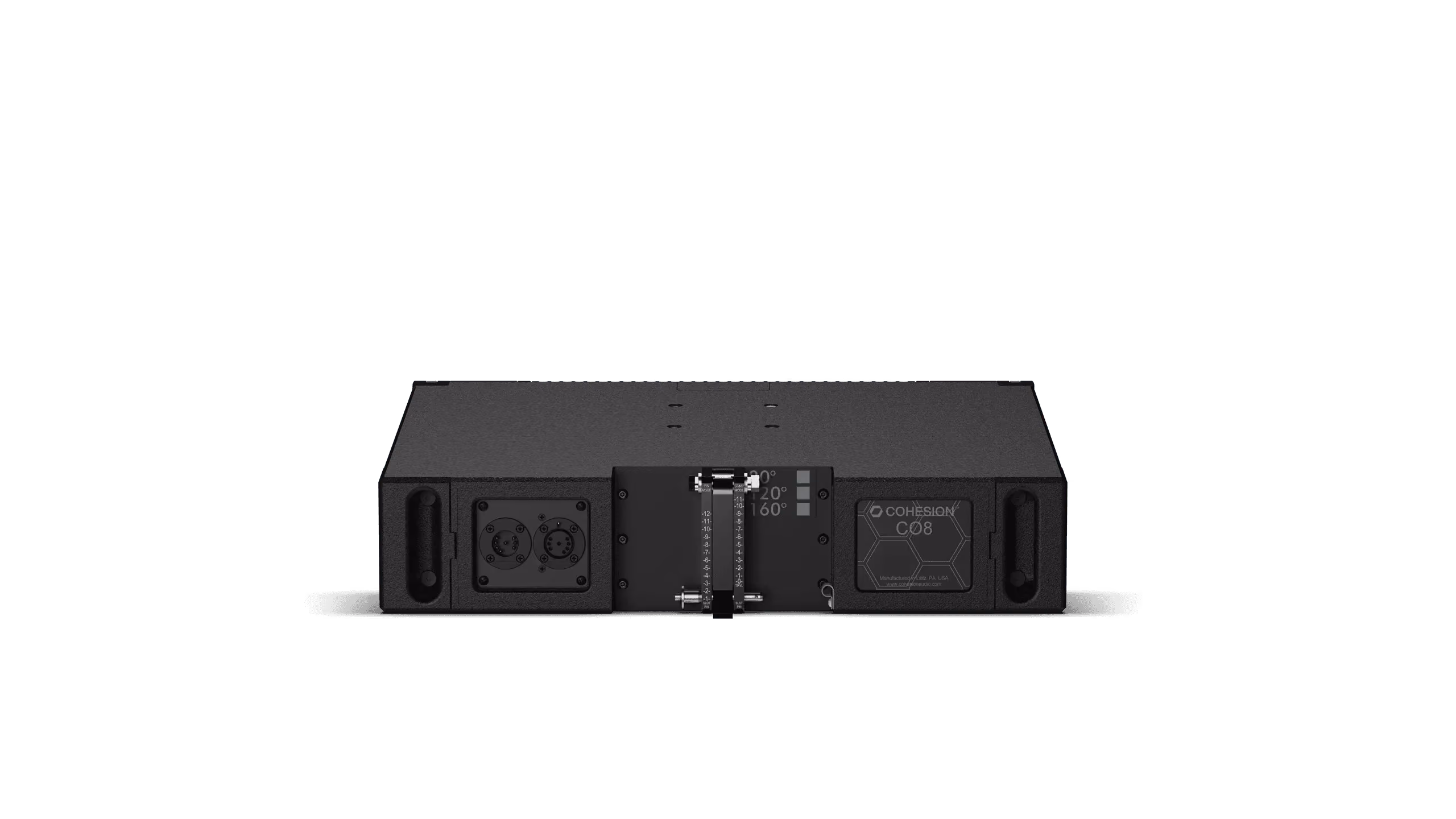

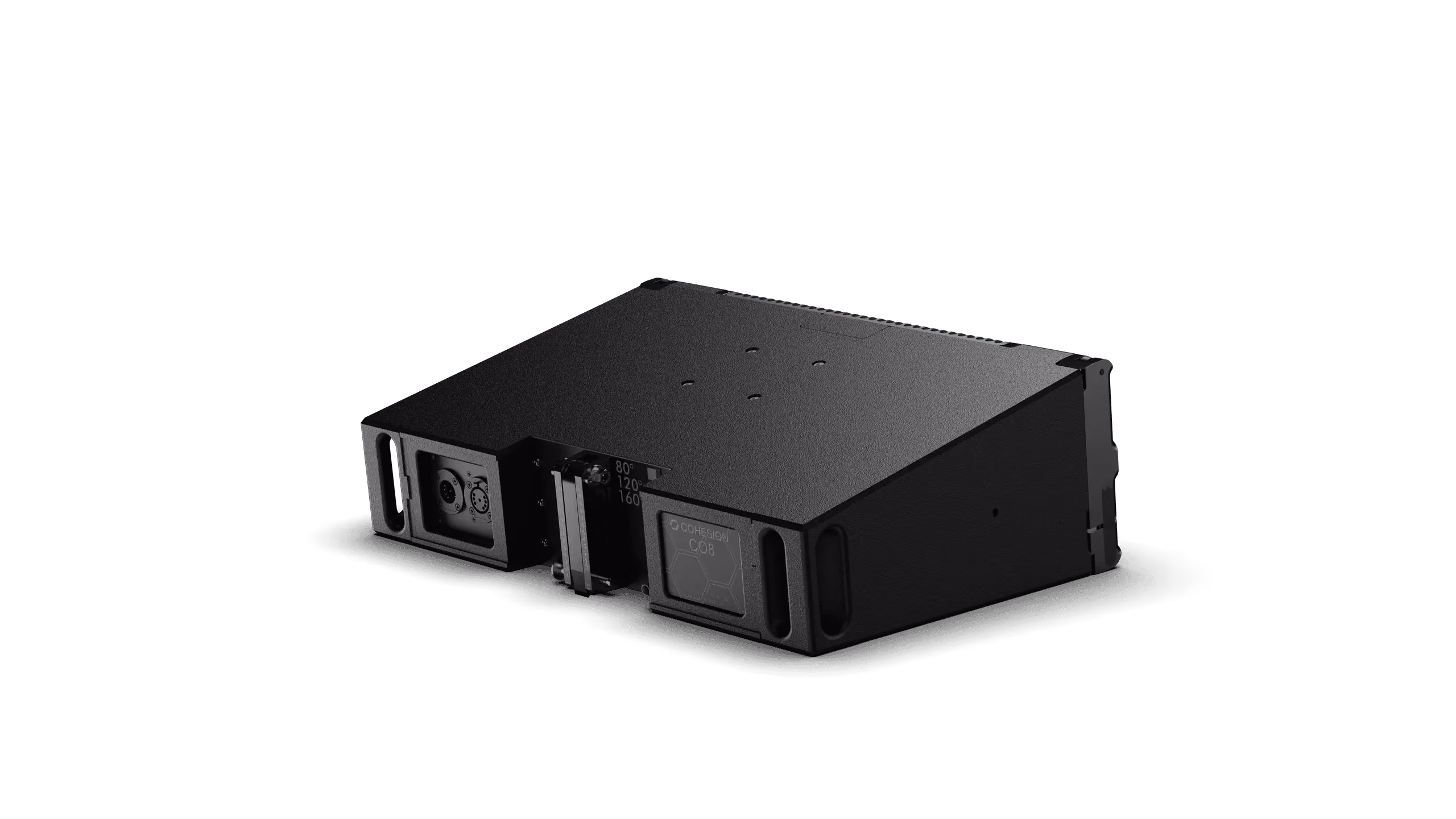

CO8

Three-Way Compact Line Array Element

Available early 2024

Weight

50.4 lbs / 23 kg

Size (HxWxD)

9.00 in. x 26.31 in. x 18.58 in.
228.6 mm x 668.3 mm x 471.9 mm

Directivity

120° H x 12° V (Standard)

80° H x 12° V or 160° H x 12° V (Optional)

Max spl

143 dB SPL @ 1 M

Bandwidth

70 Hz–18 kHz (+/-3 dB) / 50 Hz–20 kHz (-10 dB)

available for

Rental

Purchase

Rental & Purchase

Product Description

The CO8 represents the most compact offering within the CO series of variable curvature line array products. The precision assembly is designed to provide exceptional intelligibility and has a frequency response of 70 Hz–18 kHz.

With class-leading power density and three horizontal directivity patterns (80°, 120°, or 160°), the CO8 is ideally suited for aesthetically or architecturally sensitive applications requiring precision control and concert-level SPL in a compact package.

The CO8 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

Three-Way Active
Frequency Response (+/- 3 dB): 70 Hz–18 kHz
Frequency Response (-10 dB): 50 Hz–20 kHz
Max. Output: 143 dB SPL @ 1 M Bandpass Dependent
Drivers: LF/LMF: (2) 8 in. (203.2 mm) Cone Drivers / HF: (1) 1.75 in. (44.5 mm) Voice Coil Compression Driver
Nominal Impedance: LF/LMF: (2) 12 Ohms / HF: 12 Ohms
Directivity: Standard: 120° H x 10° V / Optional: 80° H x 12° V or 160° H x 12° V
Input Connection: (2) EP-8 Connectors (1 Male, 1 Female)
