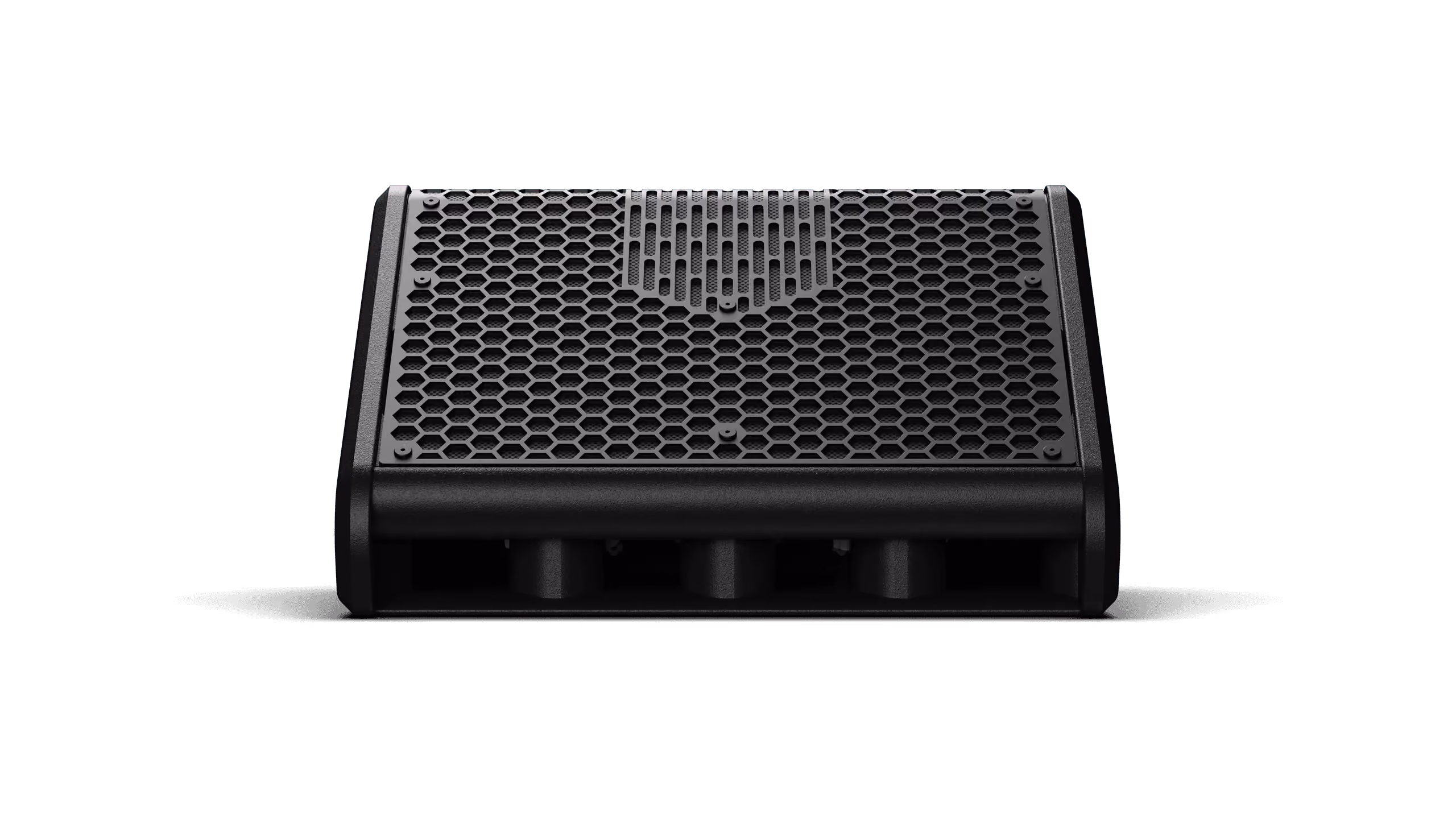

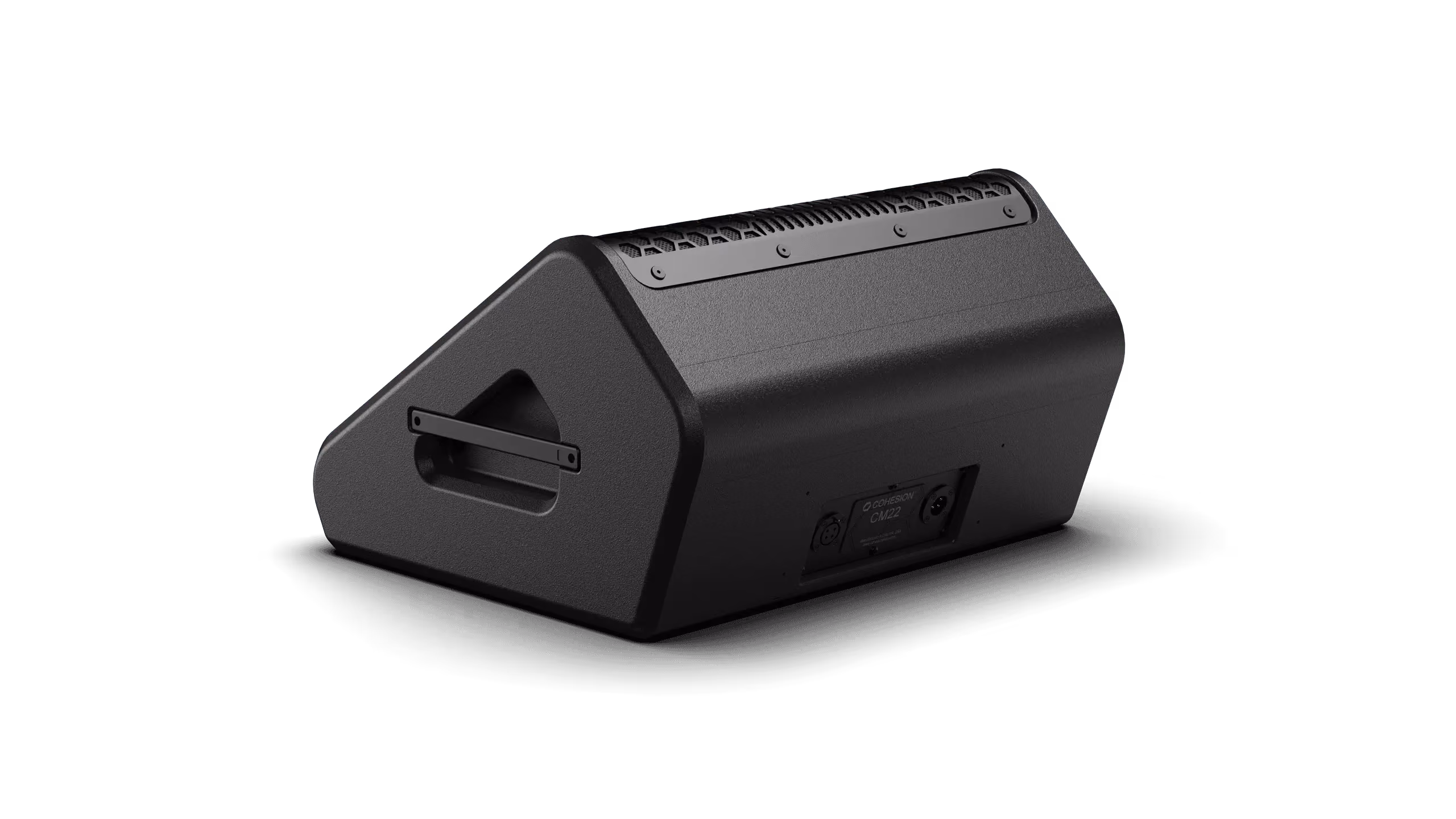

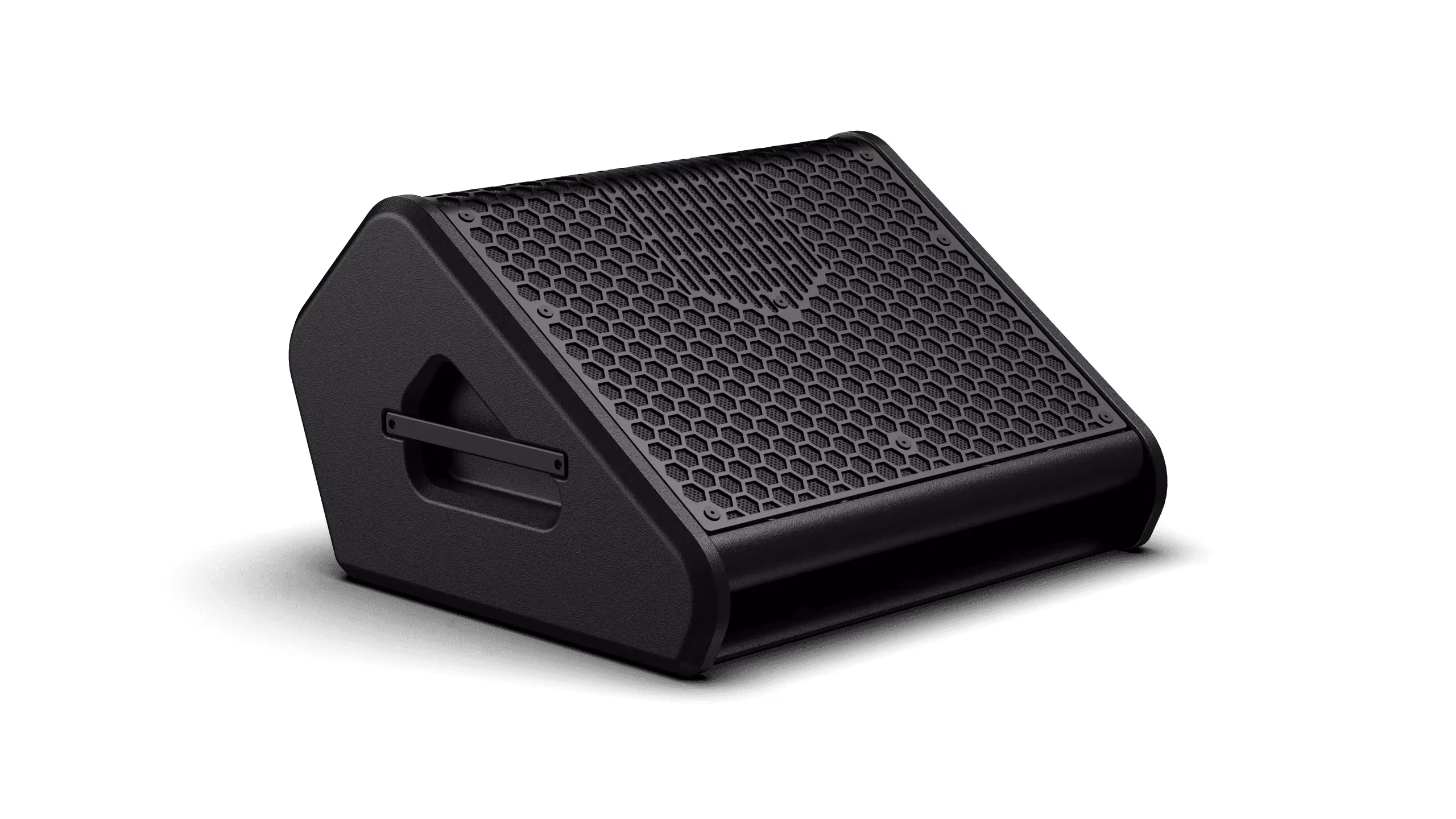

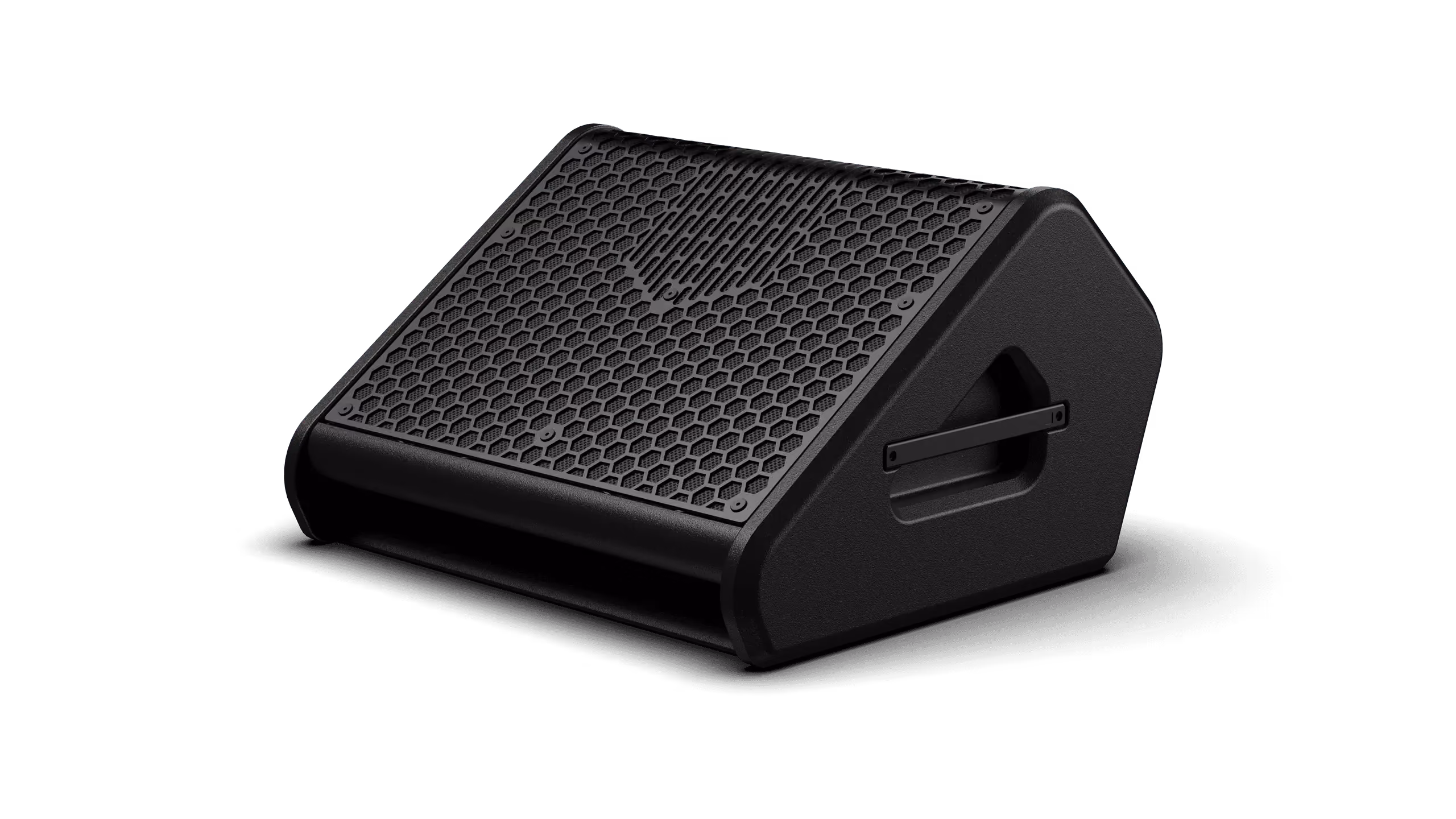

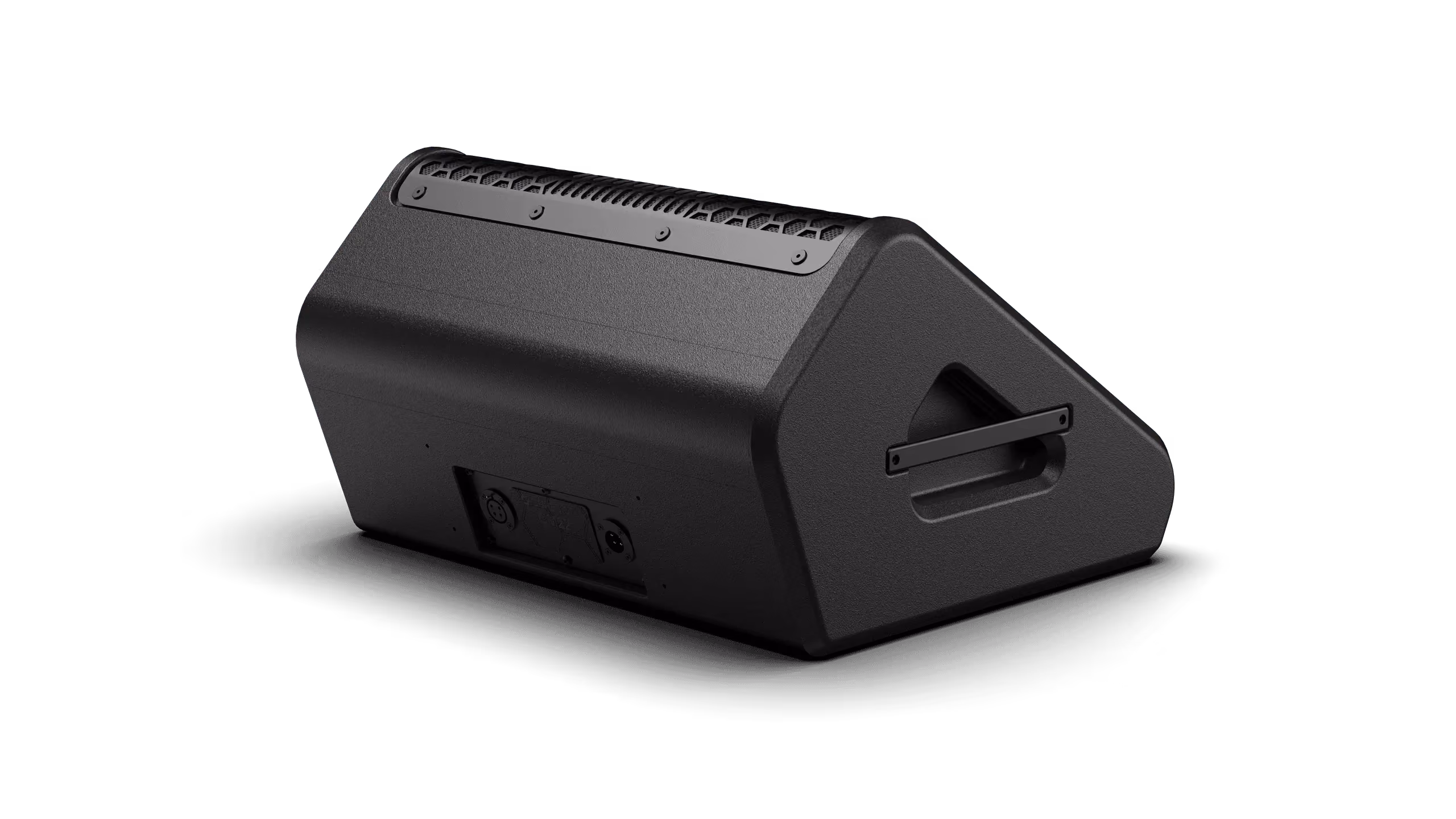

CM22

Stage Monitor

Available early 2024

Weight

77 lbs / 35 kg

Size (HxWxD)

16.32 in. x 28.00 in. x 25.15 in.
414.6 mm x 711.2 mm x 638.8 mm

Directivity

50° H x 70° V (Standard)

(Optional)

Max spl

143 dB SPL @ 1 M

Bandwidth

48 Hz–18 kHz (+/-3 dB)

available for

Rental

Purchase

Rental & Purchase

Product Description

The CM22 is a touring-grade, ultra-high output stage monitor with excellent clarity and range. It provides an excellent linear acoustic response, a precise horizontal (50°) and vertical (70°) directivity pattern, and a frequency response of 48 Hz–18 kHz.

It features two 12” neodymium dual voice coil drivers, and the high frequency horn pattern provides even coverage and high gain before feedback.

The CM22 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

Two-Way Active
Frequency Response: 48 Hz–18 kHz (+/-3 dB)
Max. Output: 143 dB SPL @ 1 M Bandpass Dependent
Drivers: LF: (2) 12 in. (304.8 mm) Cone Drivers / HF (1) 4 in. (101.6 mm) Voice Coil Compression Driver
Nominal Impedance: LF: 4 Ohms / HF: 16 Ohms
Directivity: 50° H x 70° V

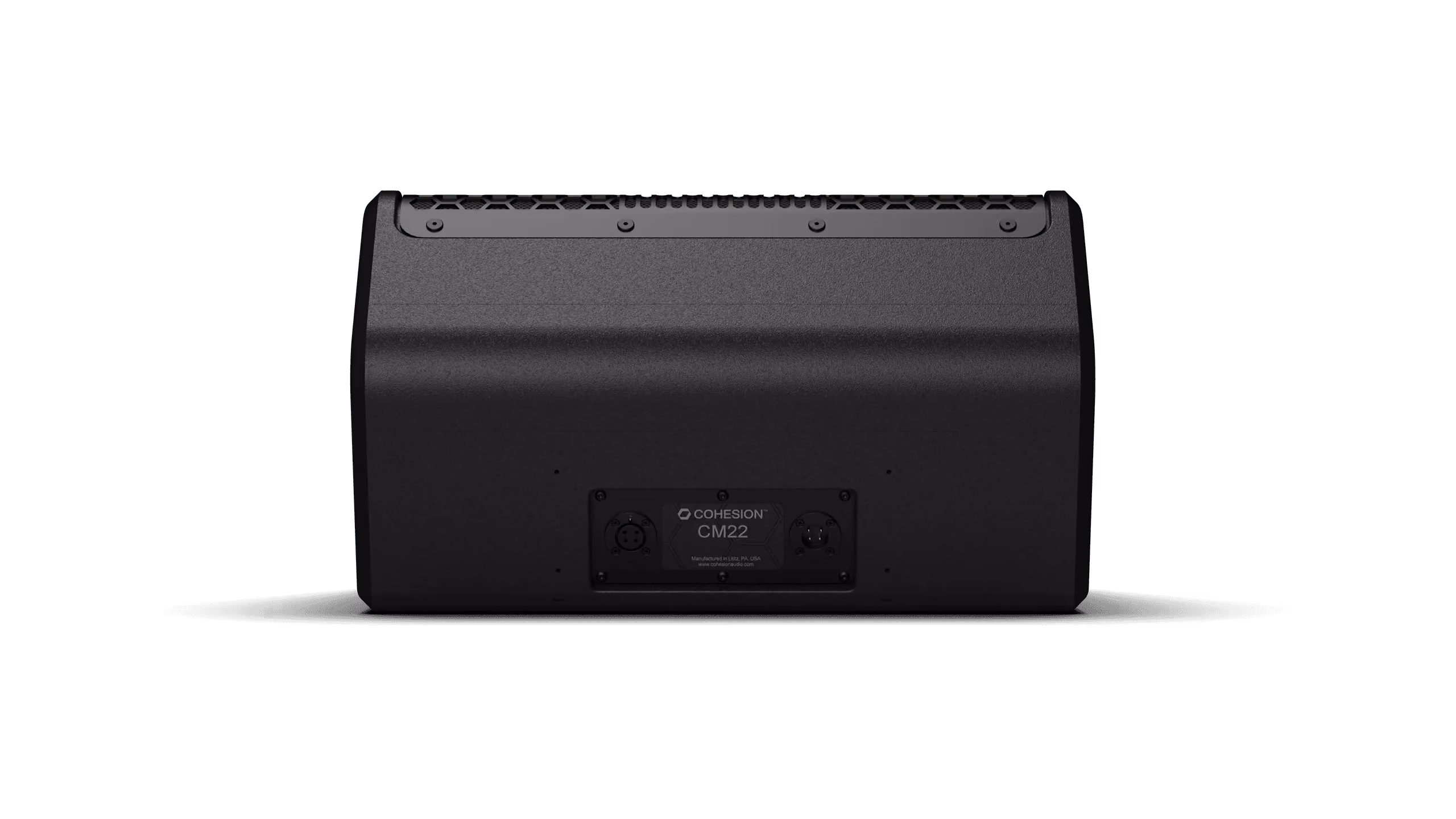

Input Connection: (2) EP-4 Connectors (1 Male, 1 Female)
