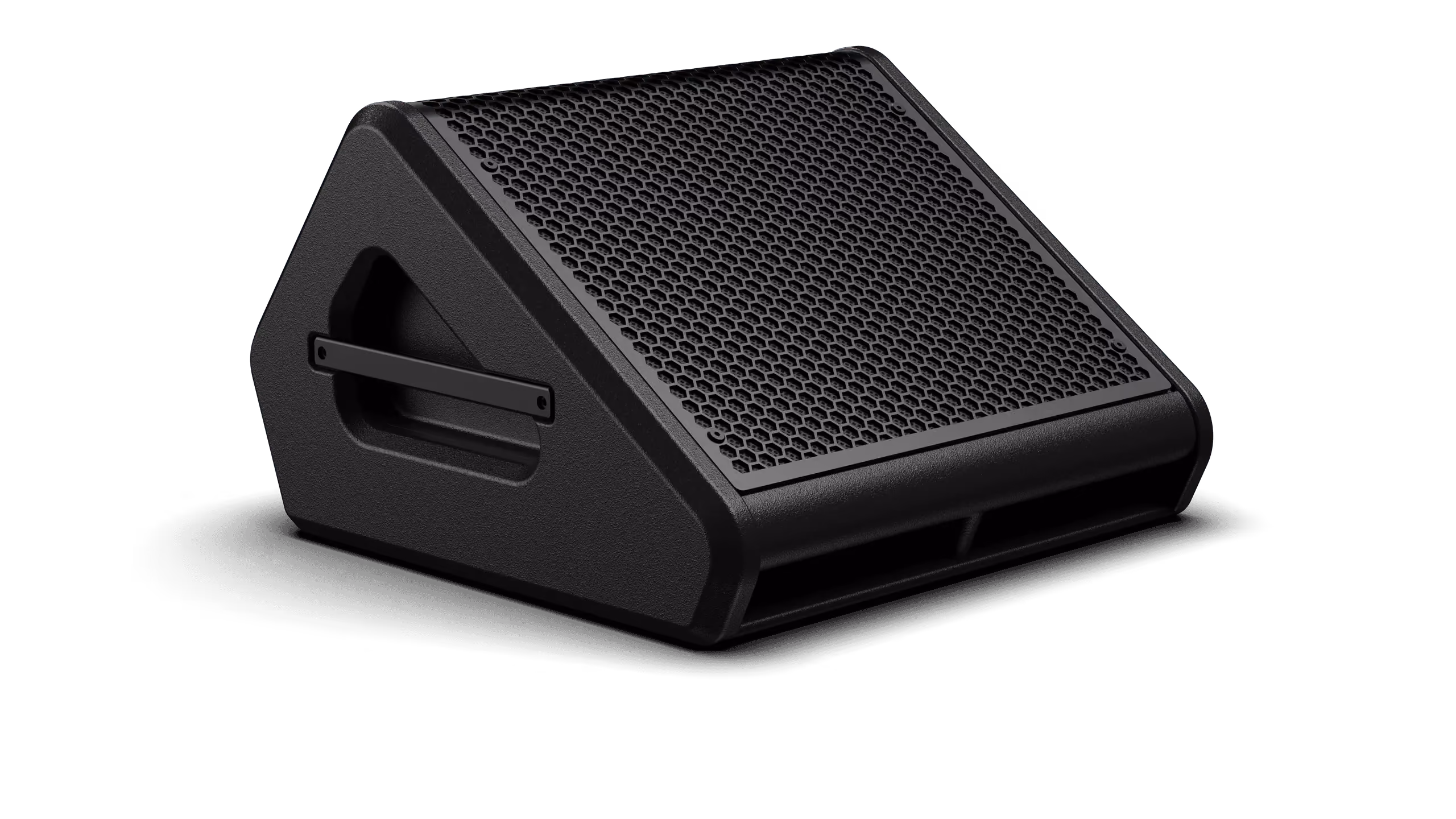

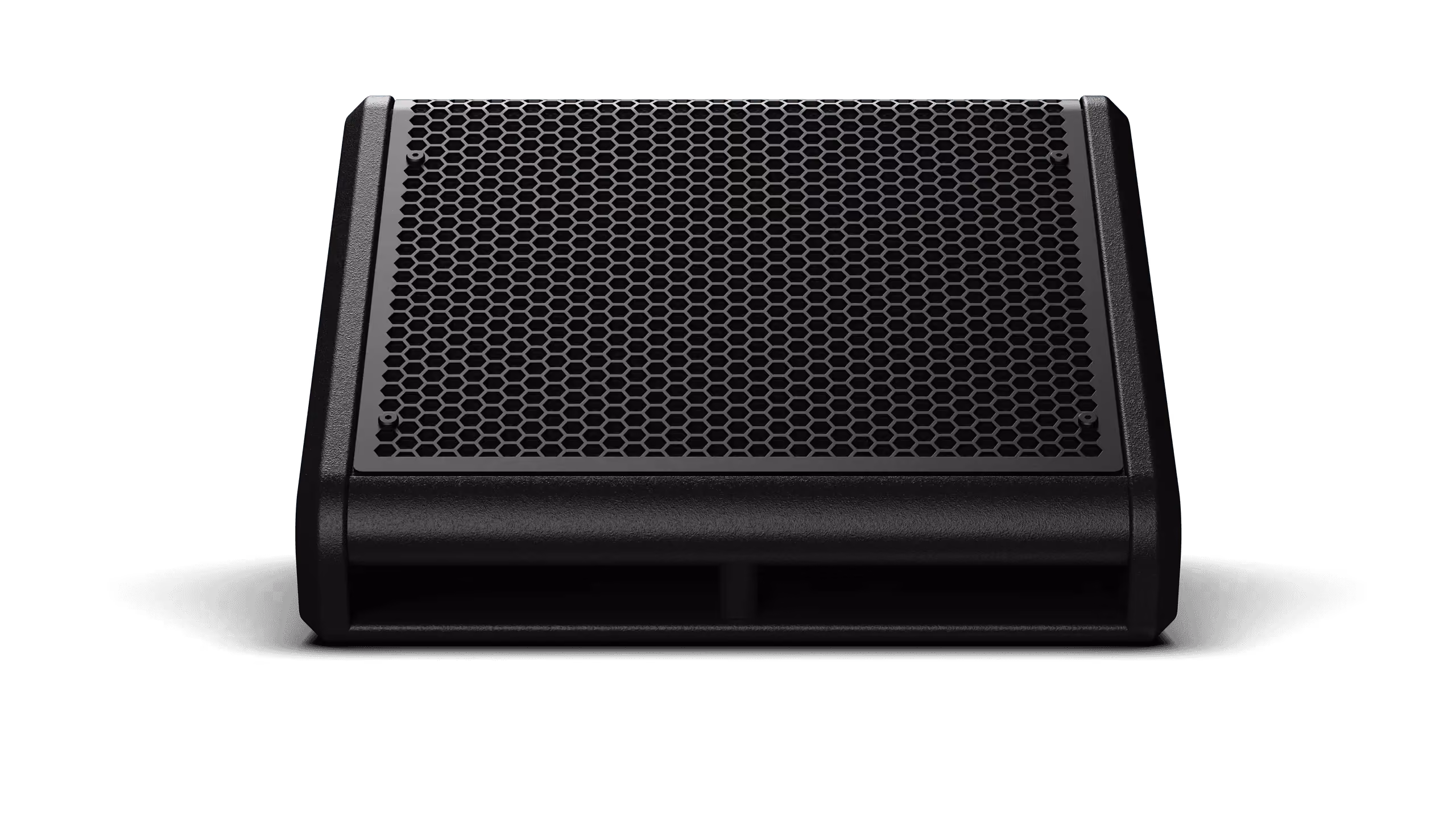

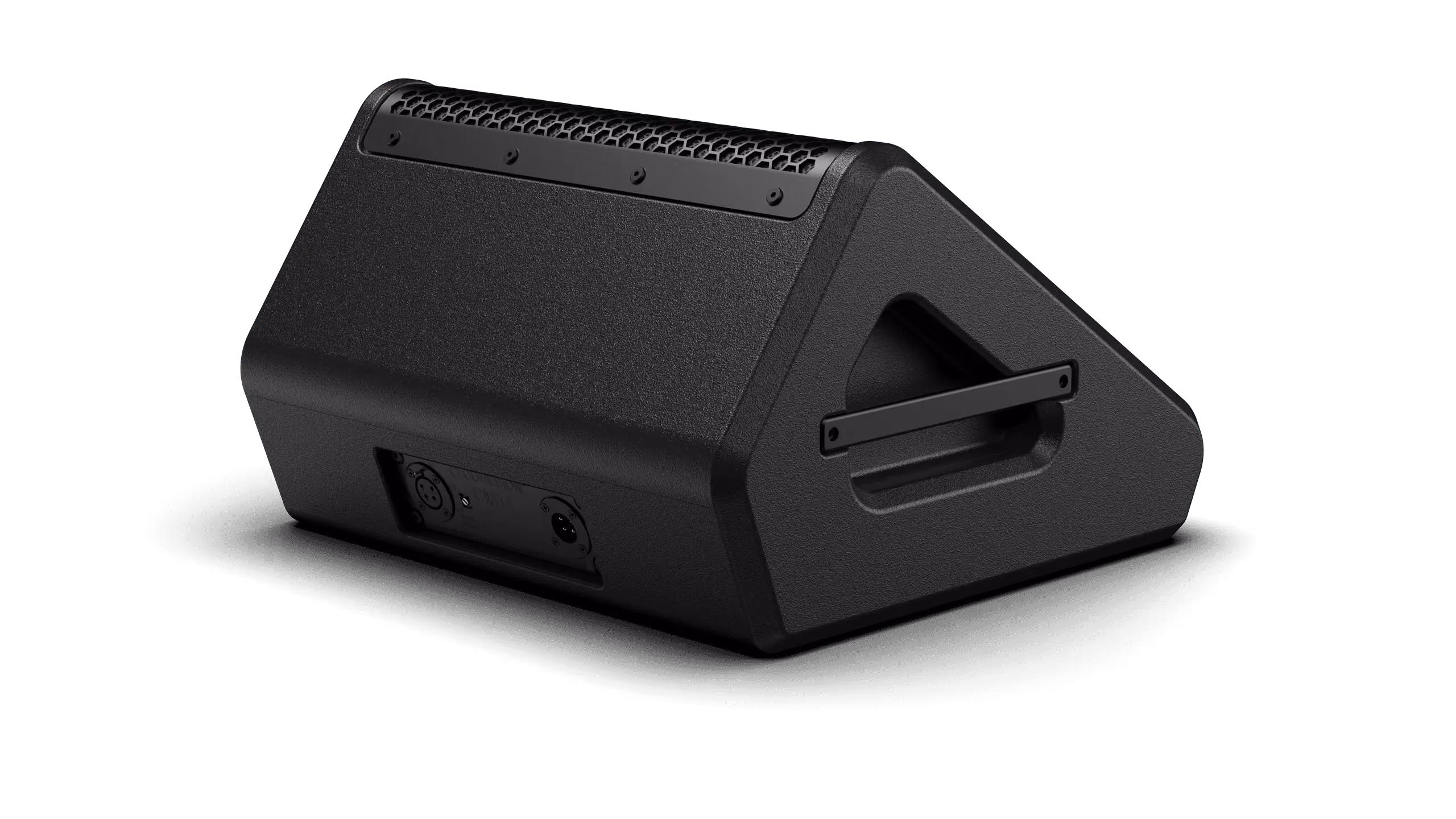

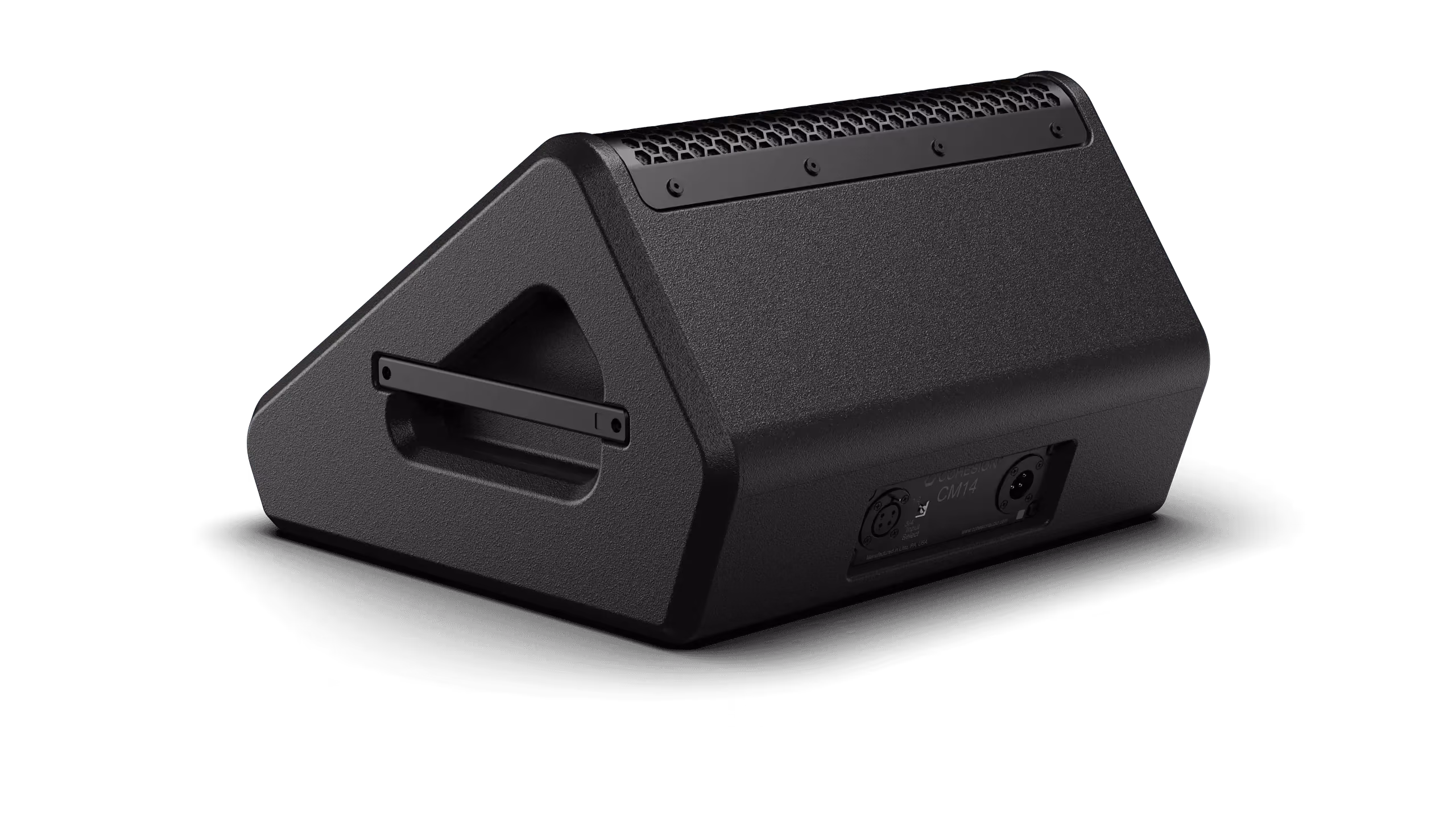

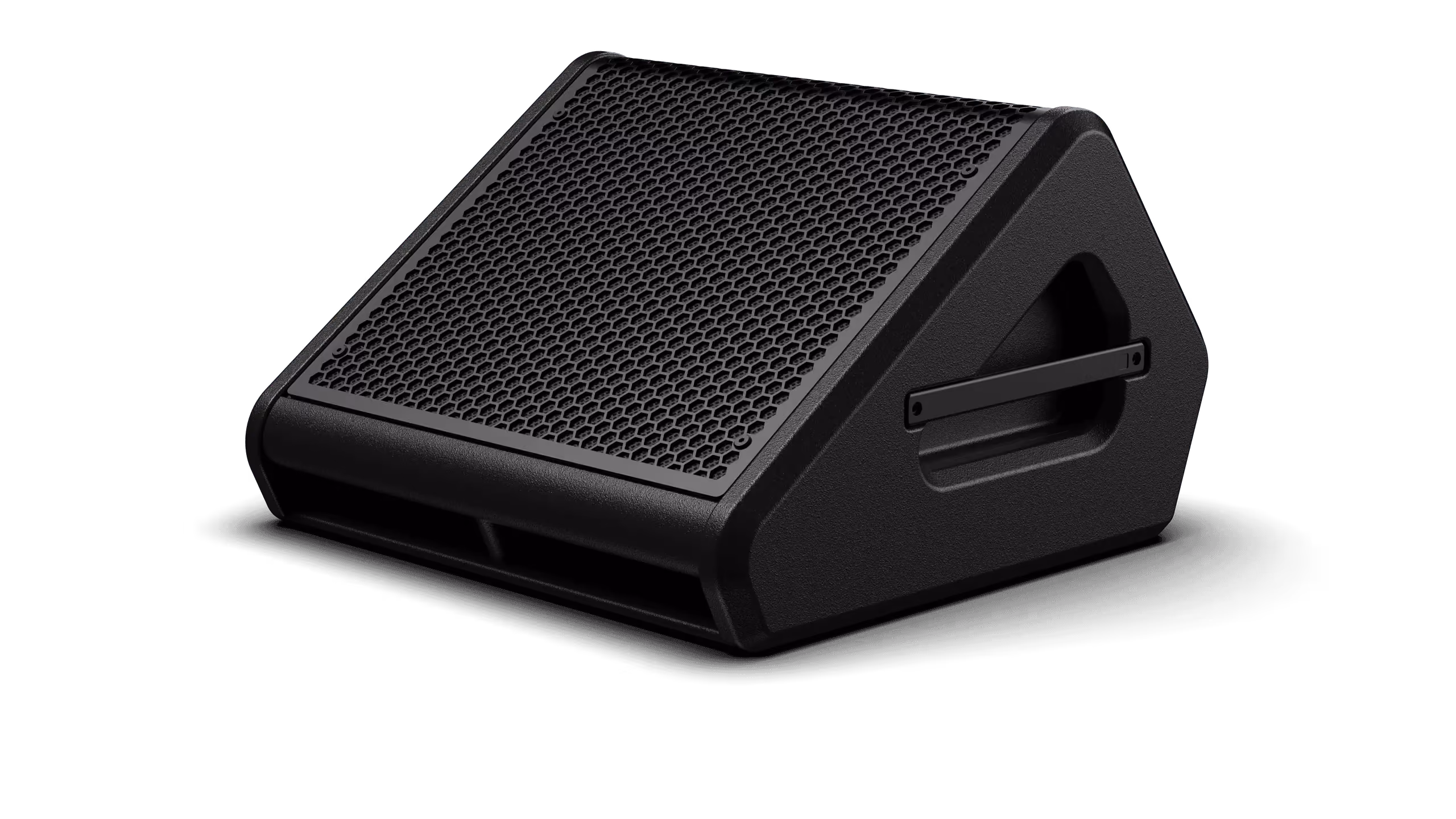

CM14

Coaxial Stage Monitor

Available early 2024

Weight

49 lbs / 22 kg

Size (HxWxD)

13.75 in. x 22.00 in. x 21.50 in.
349.3 mm x 558.8 mm x 546.1 mm

Directivity

50° H x 70° V (Standard)

(Optional)

Max spl

140 dB SPL @ 1 M

Bandwidth

48 Hz–17 kHz (+/-3 dB)

available for

Rental

Purchase

Rental & Purchase

Product Description

The CM14 is a touring-grade, high output stage monitor with excellent clarity and range. Building on the success of the celebrated 12AM monitor, this compact monitor wedge accurately reproduces kick, bass, and other LF content with a frequency response of 48 Hz–17 kHz.

It features a 14” neodymium dual voice coil driver, and the high frequency horn pattern provides even coverage and high gain before feedback.

The CM14 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

Two-Way (Single Amp Channel Passive)
Frequency Response (+/- 3 dB): 48 Hz–17 kHz
Max. Output: 140 dB SPL @ 1 M Bandpass Dependent
Drivers: LF: (1) 14 in. (355.6 mm) Cone Driver / HF (1) 3 in. (76.2 mm) Compression Driver
Nominal Impedance: 8 Ohms
Directivity: 50° H x 70° V

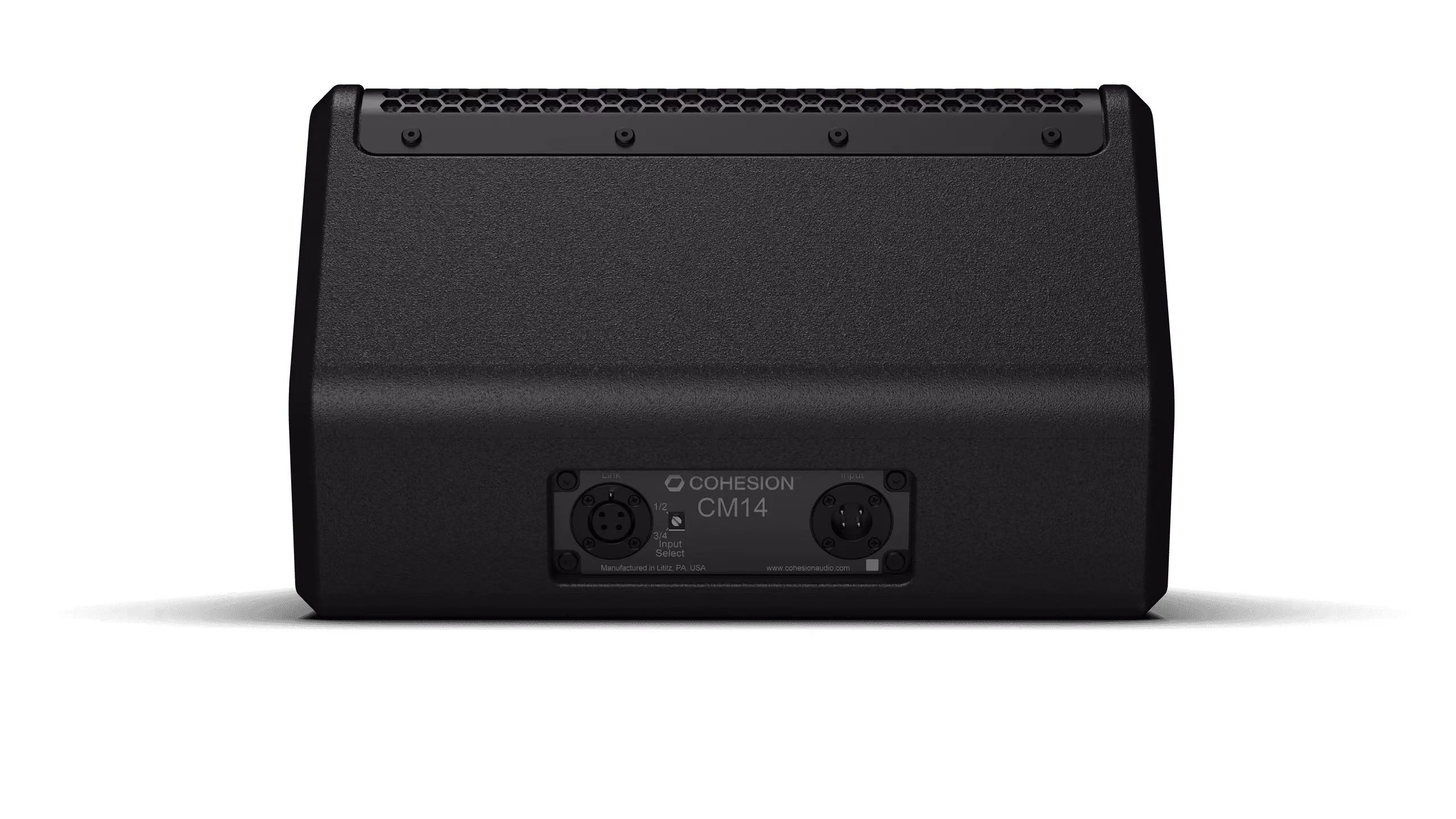

Input Connection: (2) EP-4 Connectors (1 Male, 1 Female)
