Point Sources

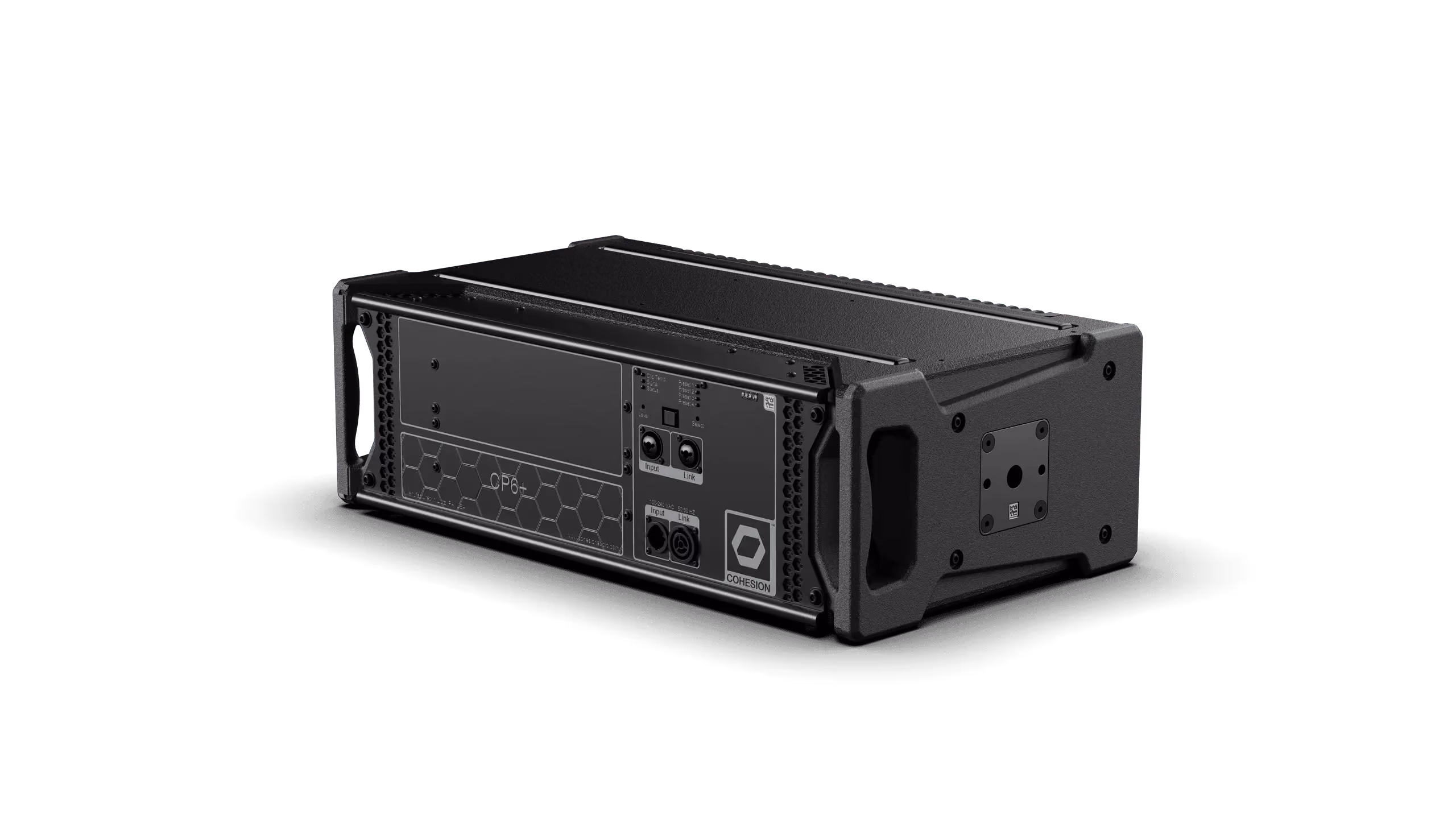

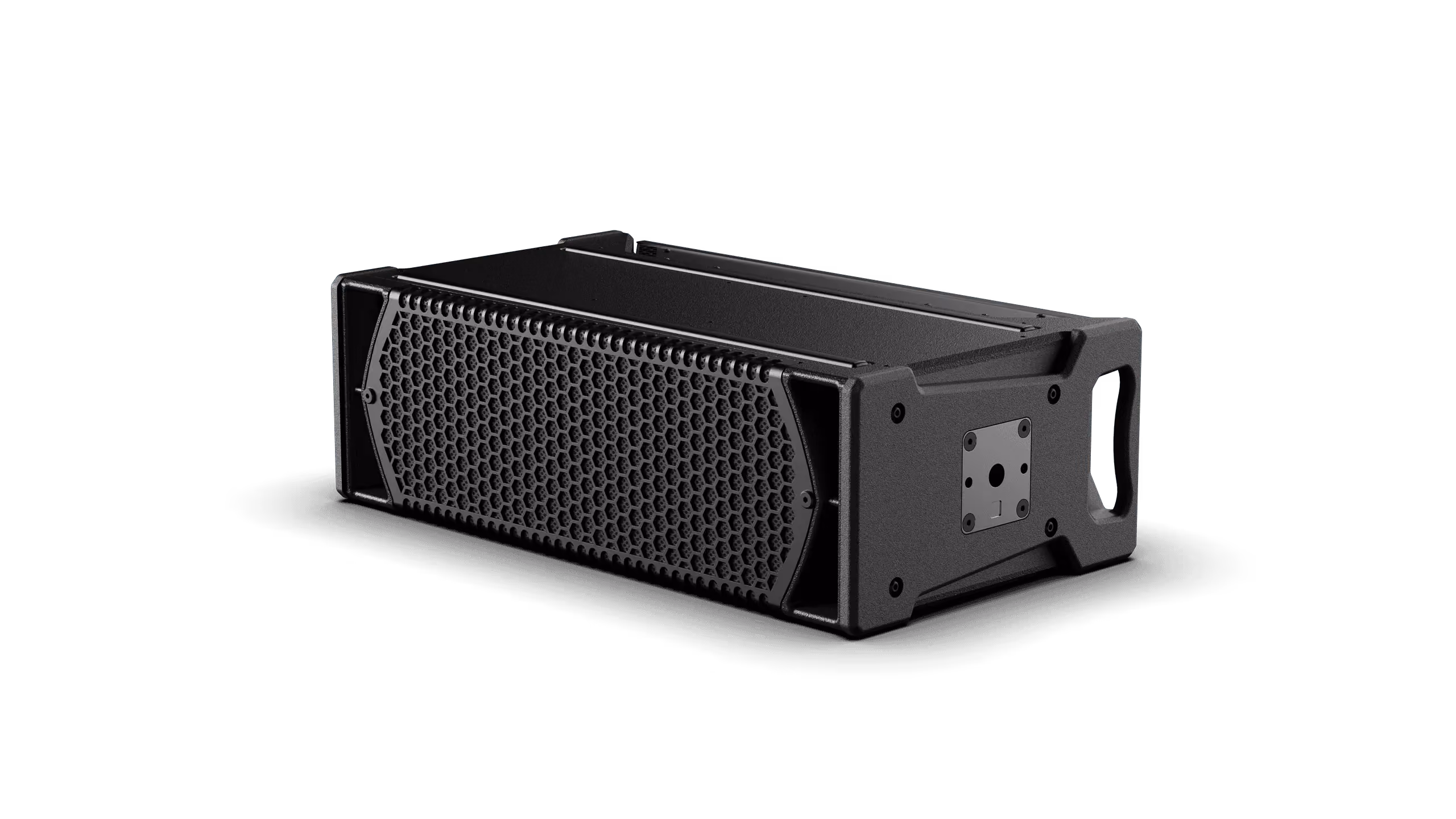

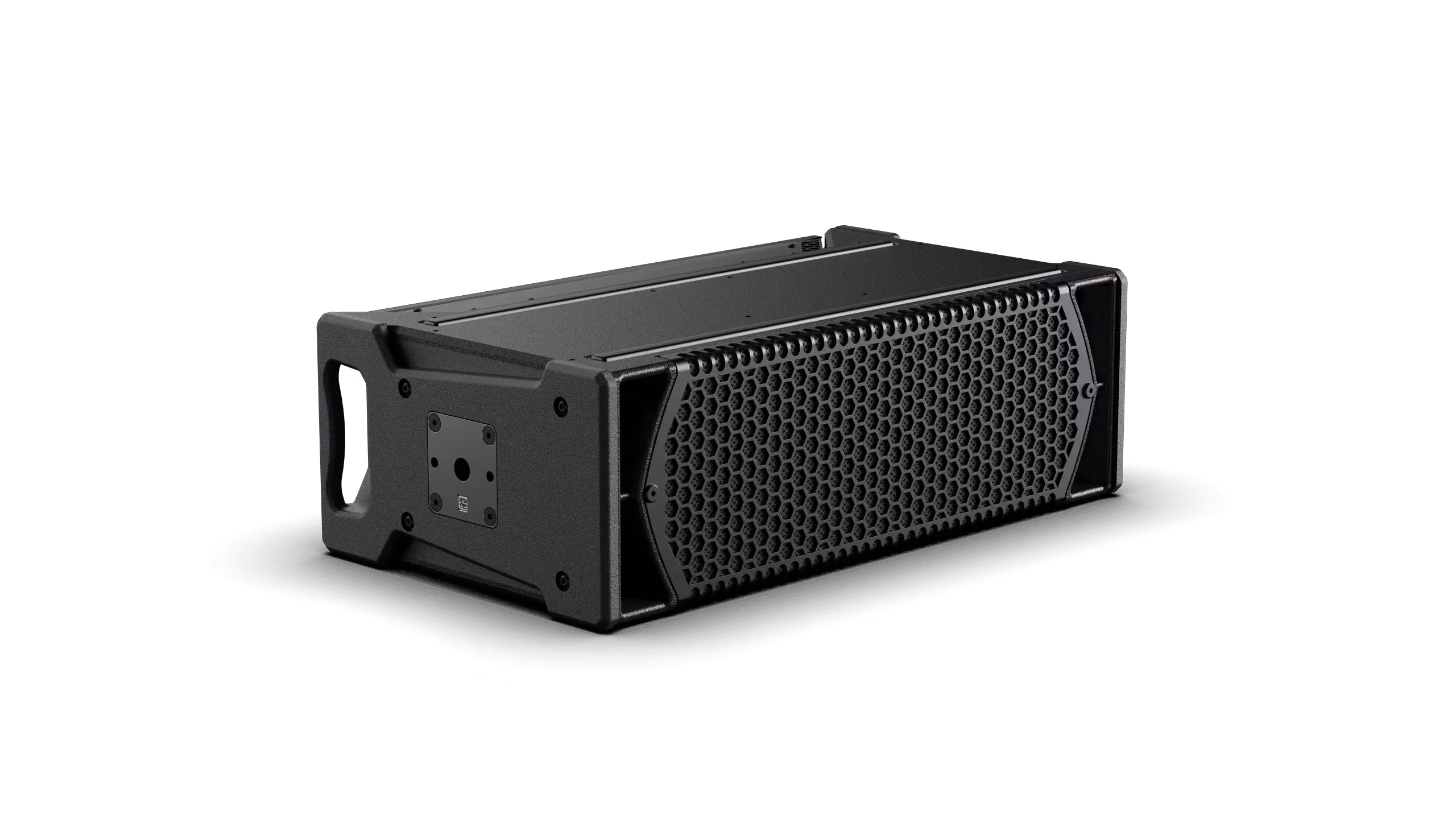

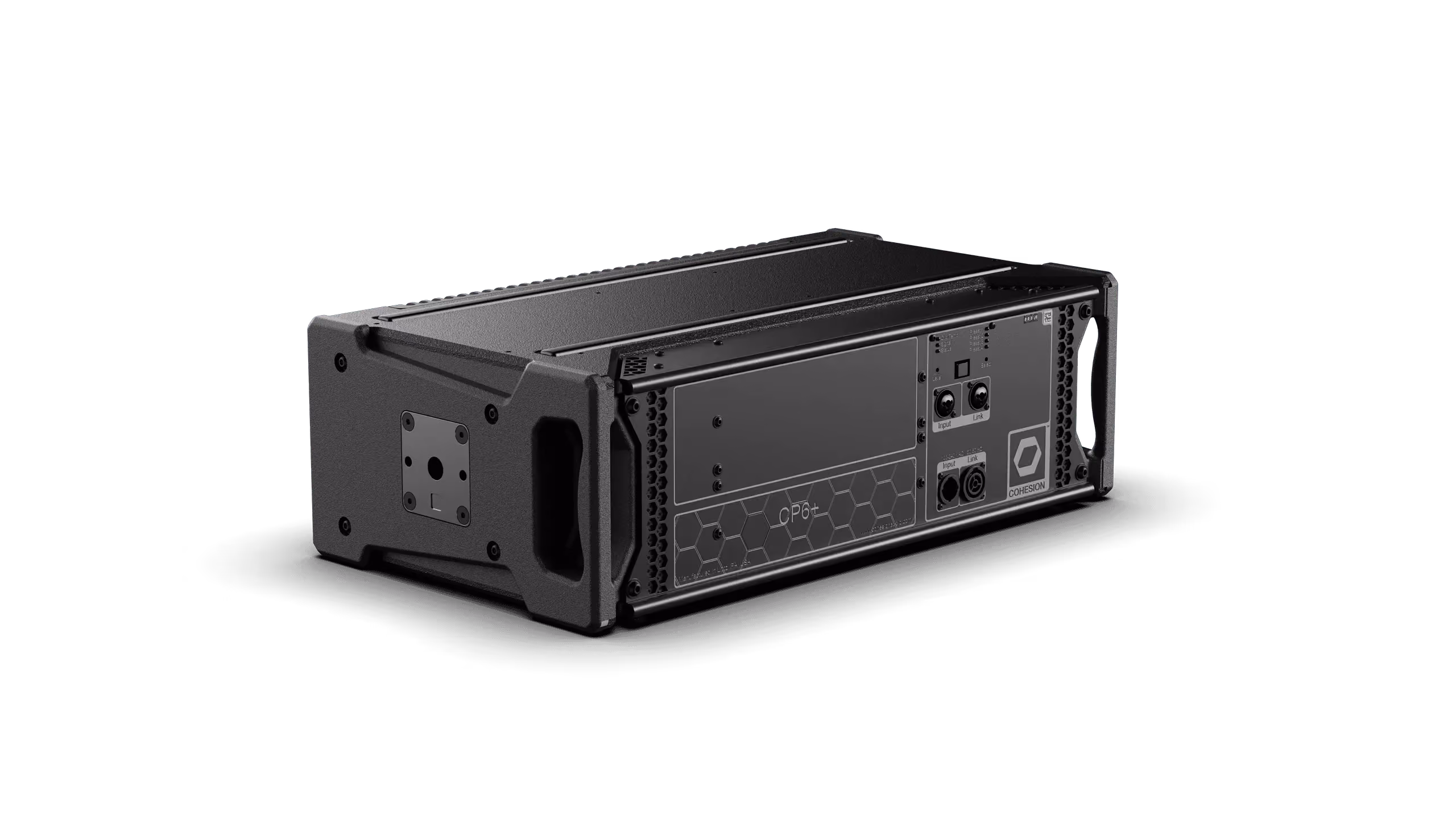

CP6+

Self-Powered Compact Point Source Loudspeaker

Available early 2024

Weight

32 lbs / 15 kg

Size (HxWxD)

7.38 in. x 23.00 in. x 12.75 in.
187.3 mm x 584.2 mm x 323.9 mm

Directivity

120° x 60° Rotatable (Standard)

80° x 60° Rotatable (Optional)

Max spl

135 dB SPL @ 1 M

Bandwidth

65 Hz–20 kHz (+/-3 dB)

available for

Rental

Purchase

Rental & Purchase

Product Description

The CP6+ is a self-powered loudspeaker system that combines powerful performance with a compact, elegant design. Whether used as a main system for corporate and distributed events, or as a complementary fill for larger systems, the CP6+ meets demanding requirements across various applications.

With precise pattern control, flexible mounting options, and optimized presets for different usage conditions, the CP6+ delivers quality performance in any setting. Used as a fill system for the CO Series or distributed on its own, the CP6+ offers exceptional application flexibility.

The CP6+ is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

Self-Powered
Frequency Response (+/- 3 dB): 65 Hz–20 kHz
Max. Output: 135 dB SPL @ 1 M Bandpass Dependent
Drivers: LF/LMF: (2) 6.5 in. (165.1 mm) Cone Drivers / HF (1) 1.75 in. (44.5 mm) Compression Driver
Directivity: Standard: 120° x 60° Rotatable / Optional: 80° x 60° Rotatable

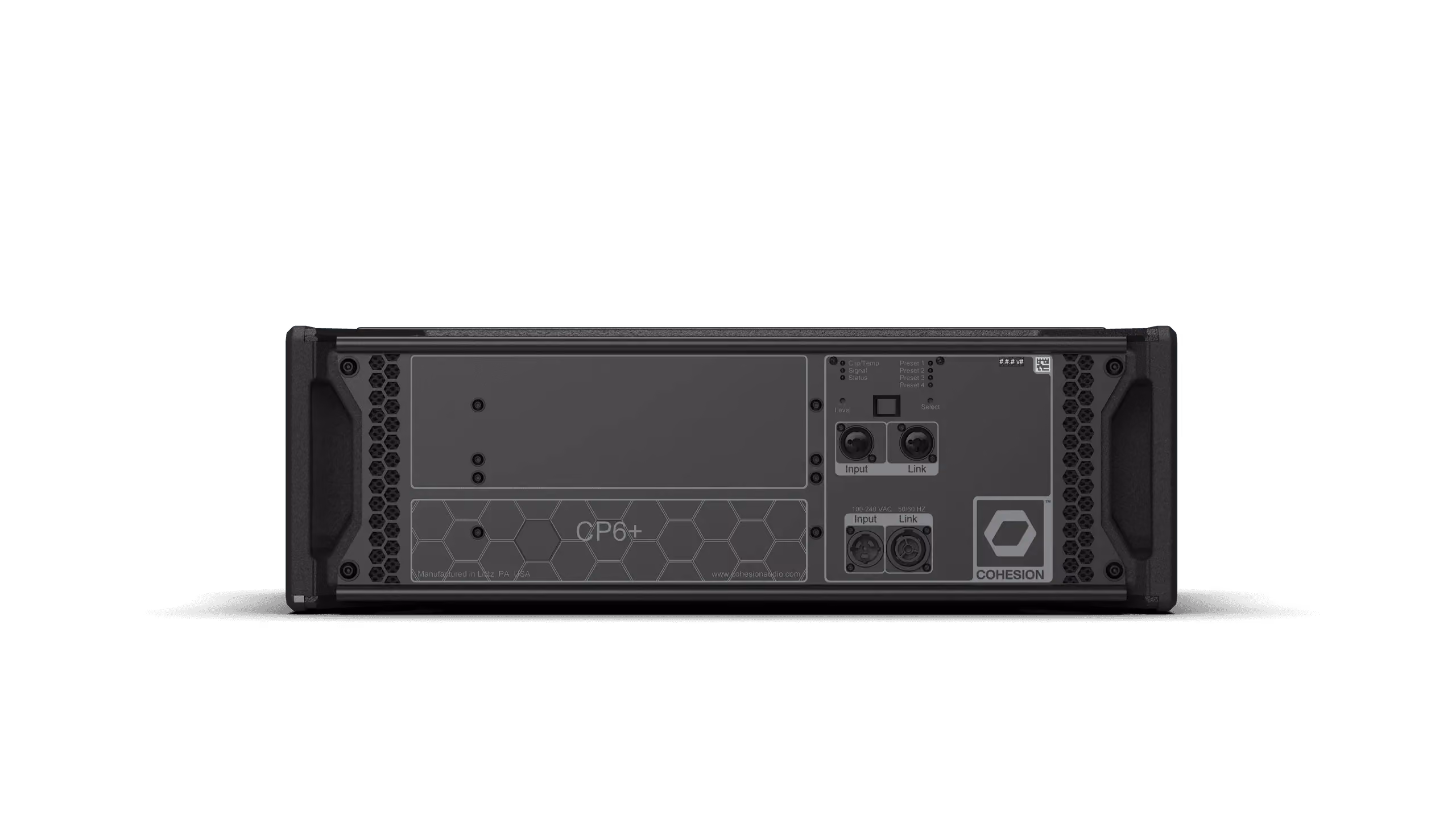

Input Connection: (2) 3-pin XLR (1 Male, 1 Female), Neutrik powerCON TRUE1 (in/link)

Related Products

CF Series

Point Sources

CF28

Point Source

CF Series

Point Sources

CF14

Point Source

CF Series

Point Sources

CF10

Point Source

CF Series

Point Sources

CF24

Point Source

Accessories

#

465824

CP6 HORIZONTAL YOKE

CP6+ Horizontal Yoke Mounting Bracket

#

465825

CP6 VERTICAL YOKE

CP6+ Vertical Yoke Mounting Bracket

#

465829

CP6+ CHEESEBORO SIDE PANEL BRACKET

CP6+ Cheeseboro Side Panel Bracket Assembly

#

465826

CP6+ M20 UNIVERSAL ADAPTER

CP6+ M20 Universal Adapter

#

15511

CP6+ Transport Case

CP6+ Transport Case (4x)

Downloads

For more comprehensive downloads inlcuding CAD models for this product, navigate to our private Clair Product downloads portal by clicking the button below. You may be prompted to log in or create an account. Public downloads may be found on this page.

Downloads Portal

TEST DATA
